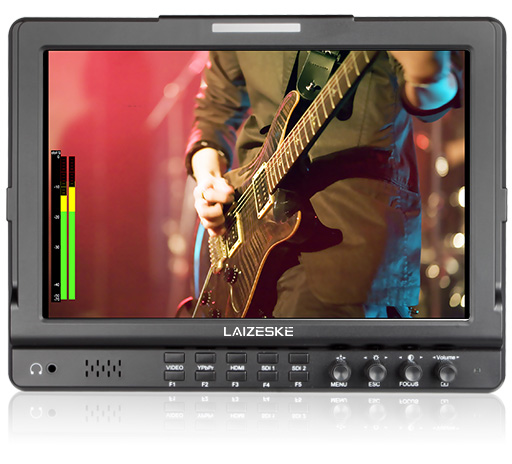

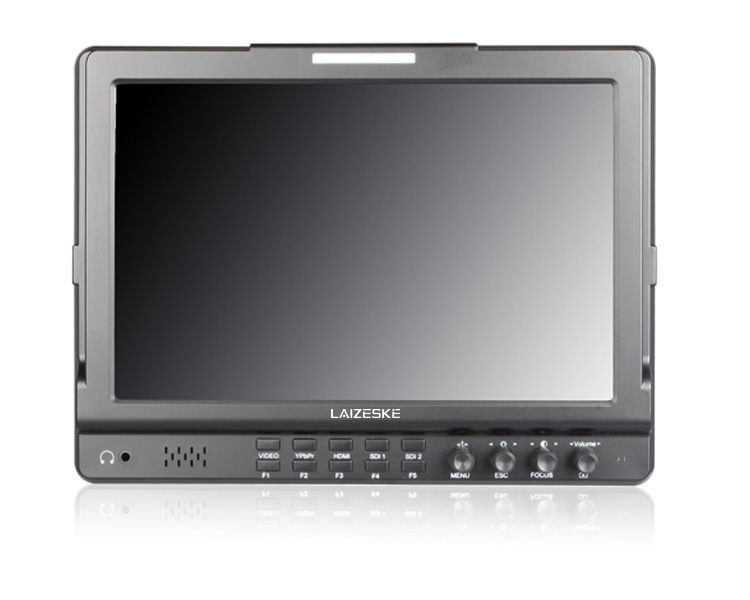

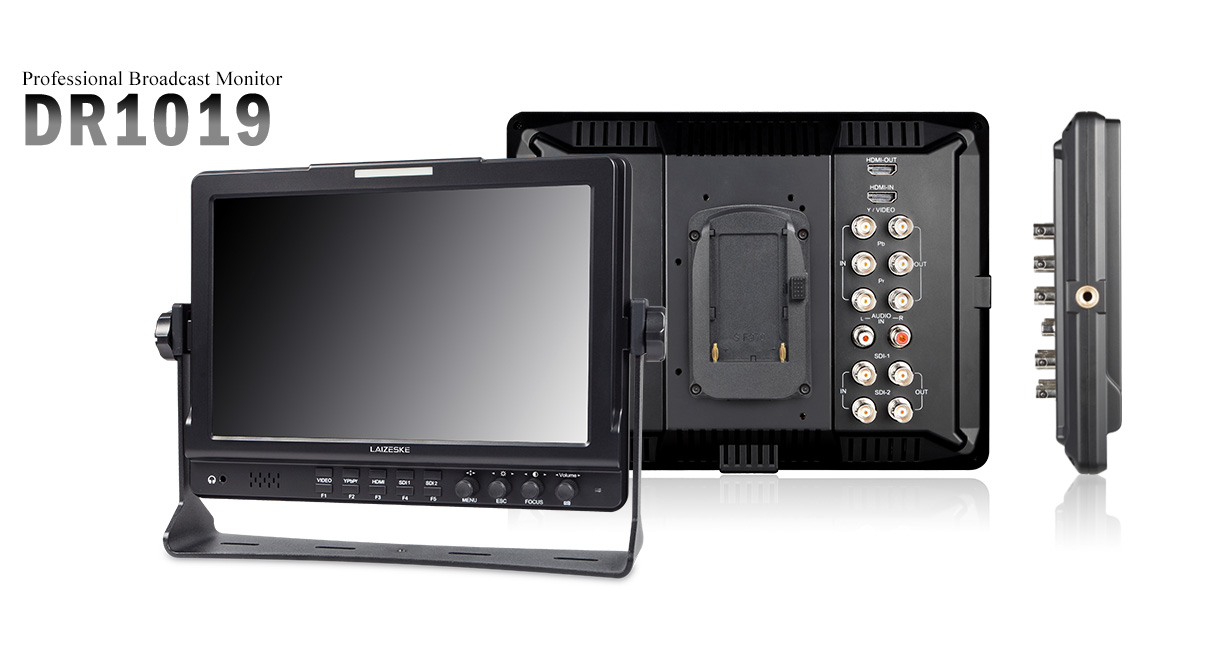

The DR1019 is one of the newest monitor with waveform, vectorscope and RGB Histogram. These key features assist to shoot the professional video right in one time. DR1019 with 10.1 inch, 1280 X800 high resolution IPS panel is optimal to display its advanced software features. DR1019 is also with false color and peaking focus assist, to enable the professional video to deliver the precision shots in the field.
DR1019's HDMI input is complimented by Dual 3G-SDI input/output along and the feature of headphone audio out. With dual SDI inputs, it is Seamless Switch and fast swap for toggling between both inputs. DR1019 also includes composite and component connections, to give you the versatility to support all of your signals and video equipment. The customized function buttons can be tailored for your workflow and optimization. Furthermore, DR1019 is well suited for a variety of video applications, from the studio to on location. Enjoy high-resolution, versatile monitoring wherever you need it.

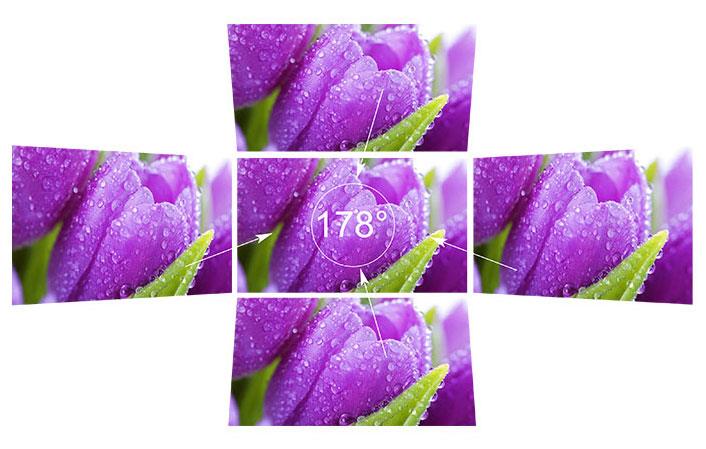

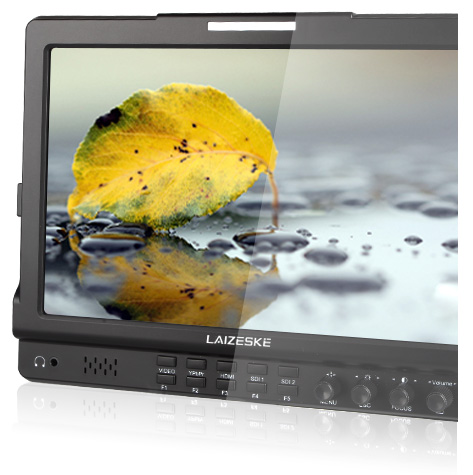

Wider Viewing Angle
Enjoy Consistent Images from Any Perspective DR1019 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
Enjoy Consistent Images from Any Perspective DR1019 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
-
Wide color gamut LCD panel and 1280x800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.
-

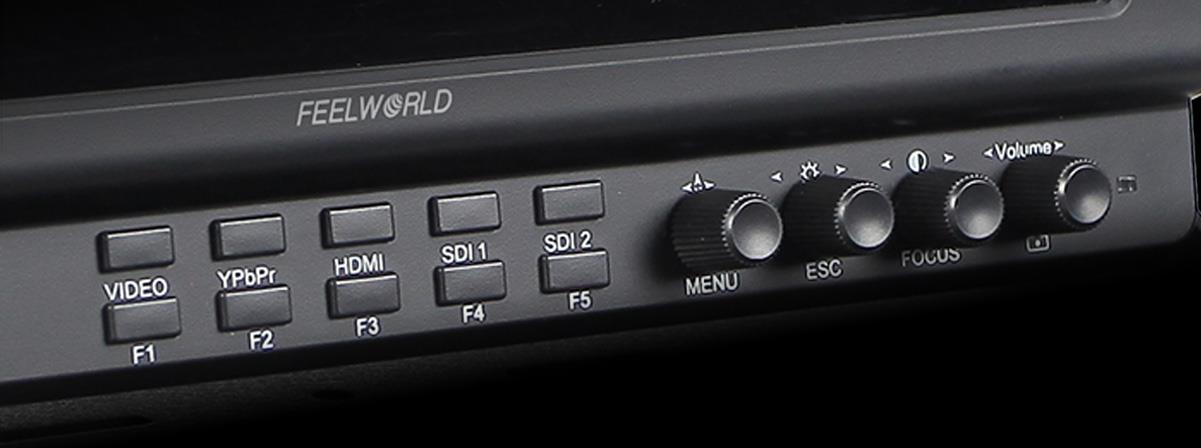

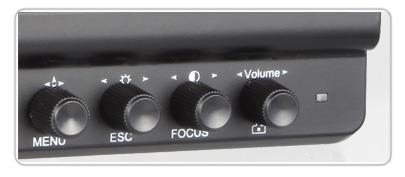

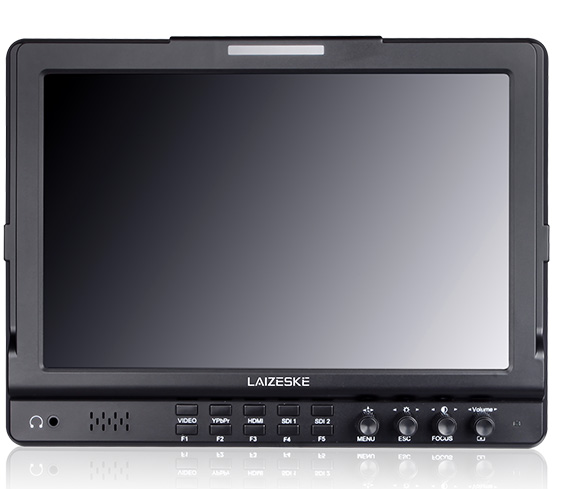

Innovation OSD operation
DR1019 not only set up five "F key" for waveform, vectorcope, color histogram, peaking focus and so on. but also have "3 group User Presets", reserves the knob for professional users. Double functions and knob type coding switch are LAIZESKE's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
-

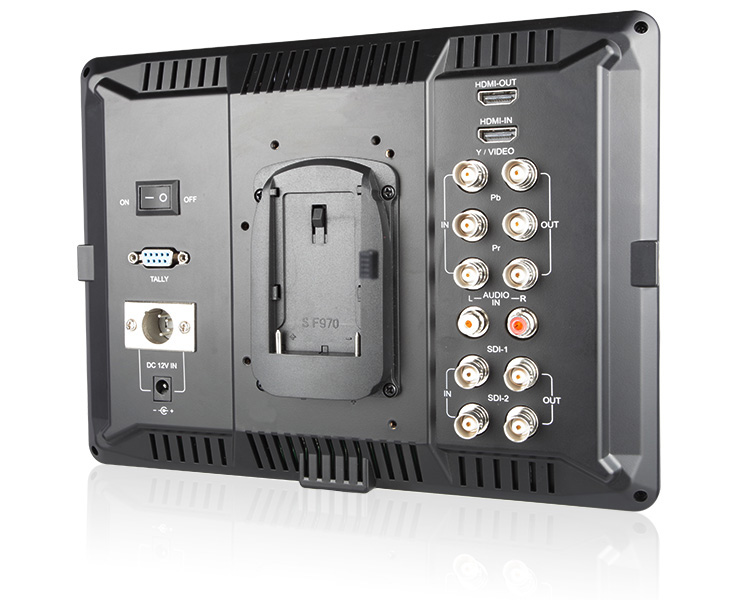

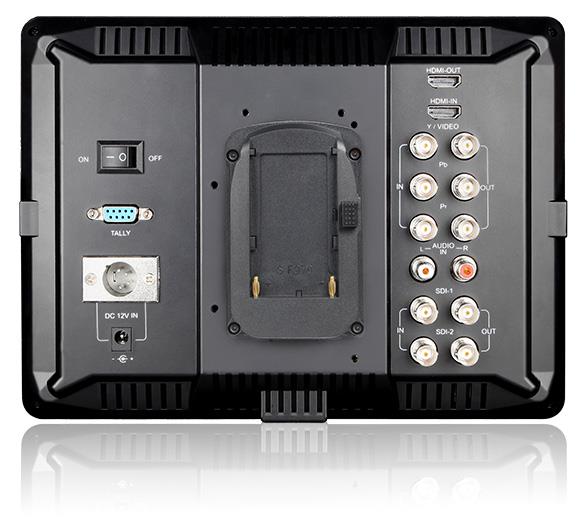

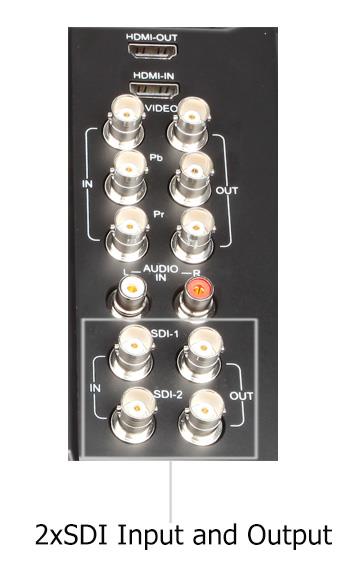

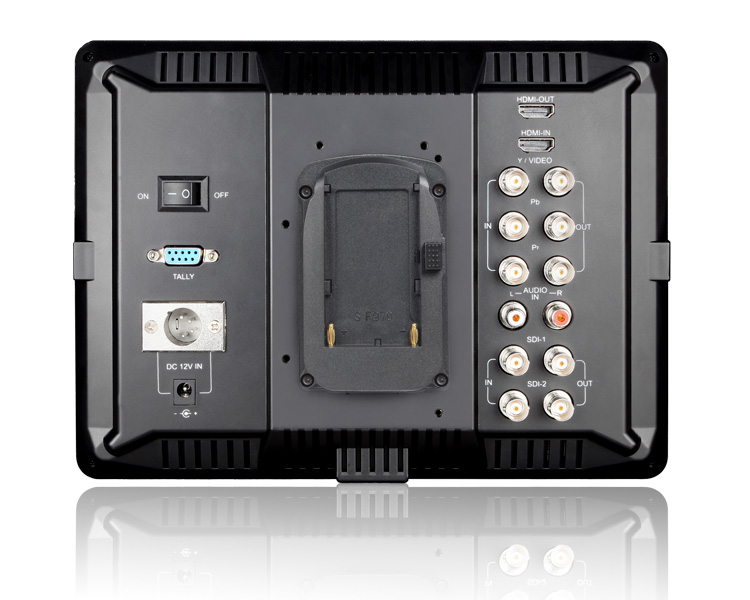

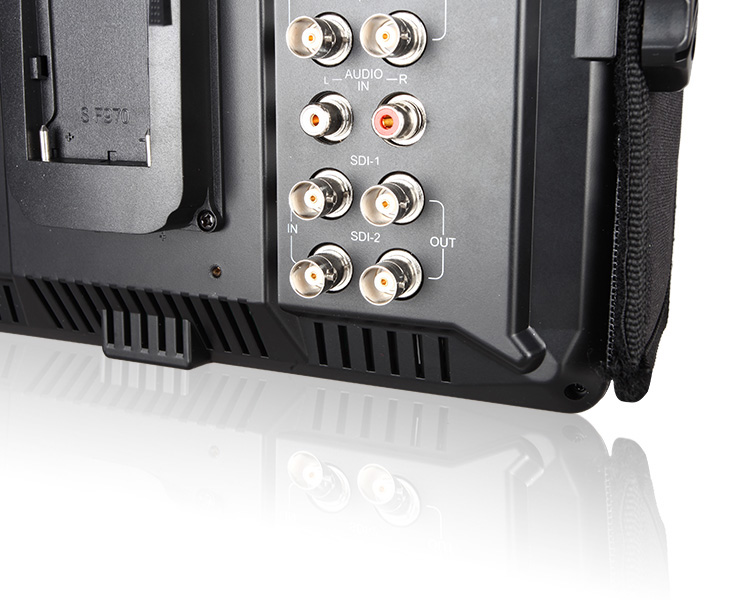

Multiple Inputs and Outputs

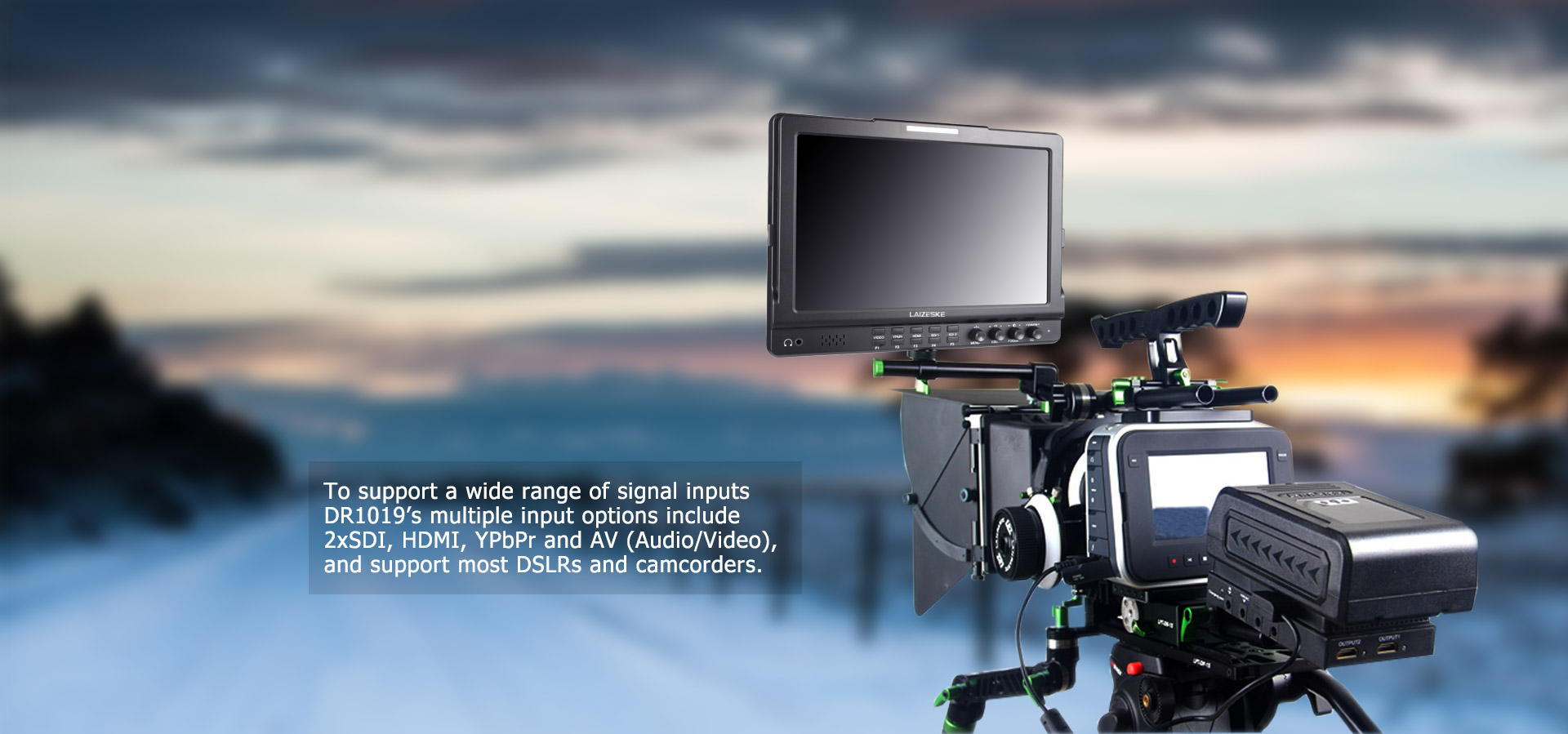

Multiple input formats to meet the need of the professional inputs and display functions with all HD, SD, analogue video signal input. The monitor comes with 3G HD-SDI, HDMI, Composite, and Component Input and Ouput. DR1019 has both HDMI SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at once while still maintain the original video quality.

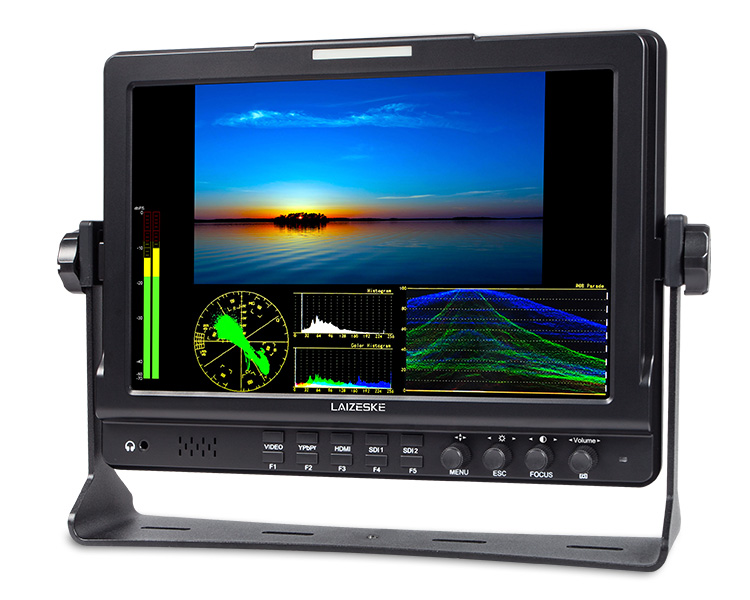

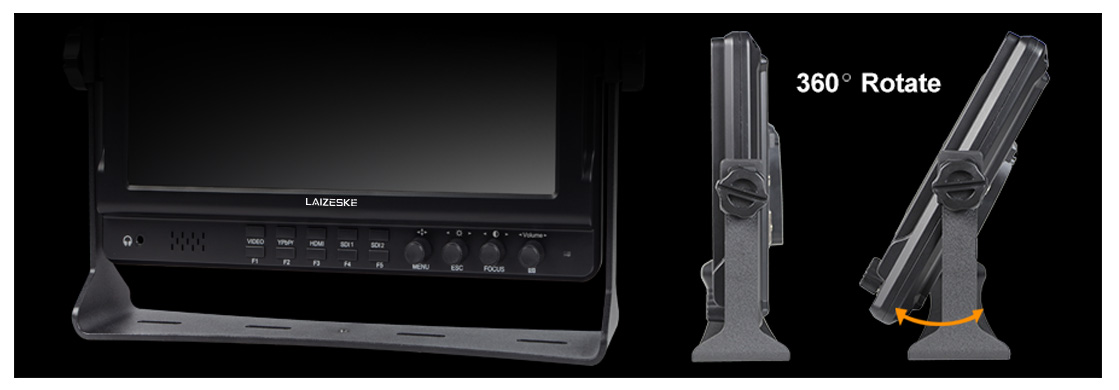

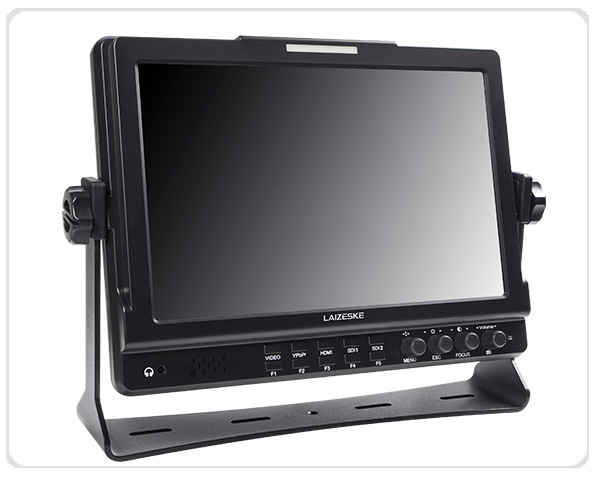

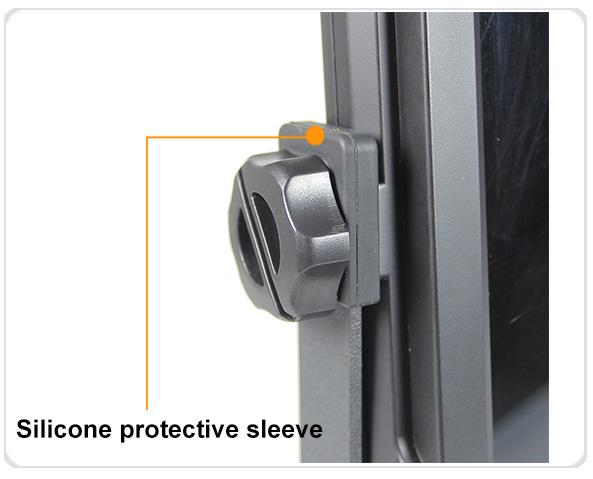

Gimbal Bracket
-

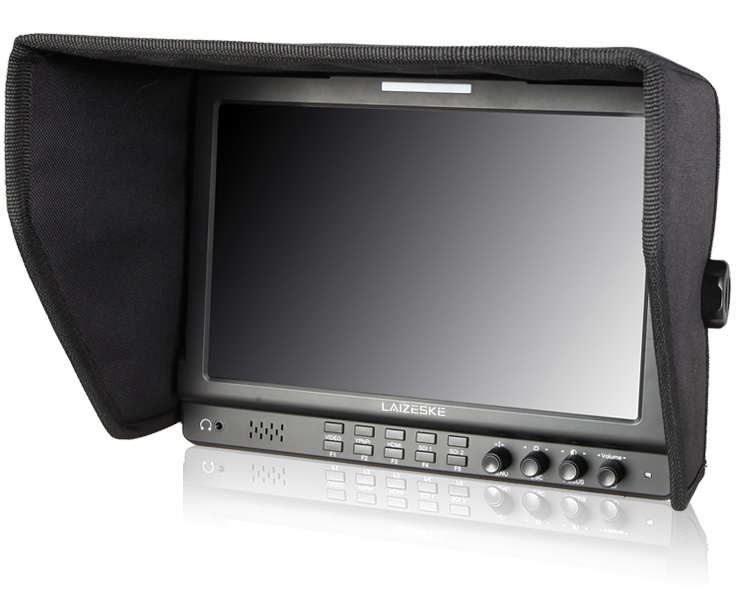

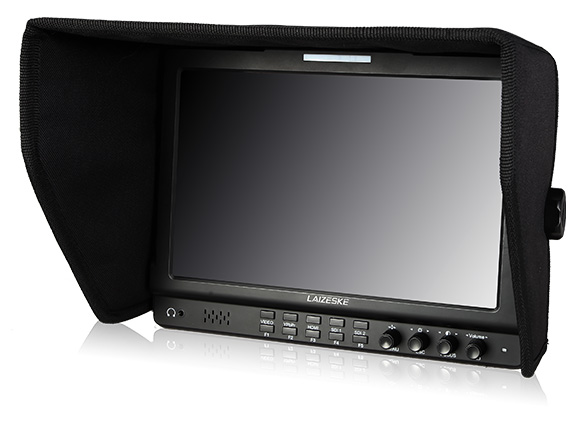

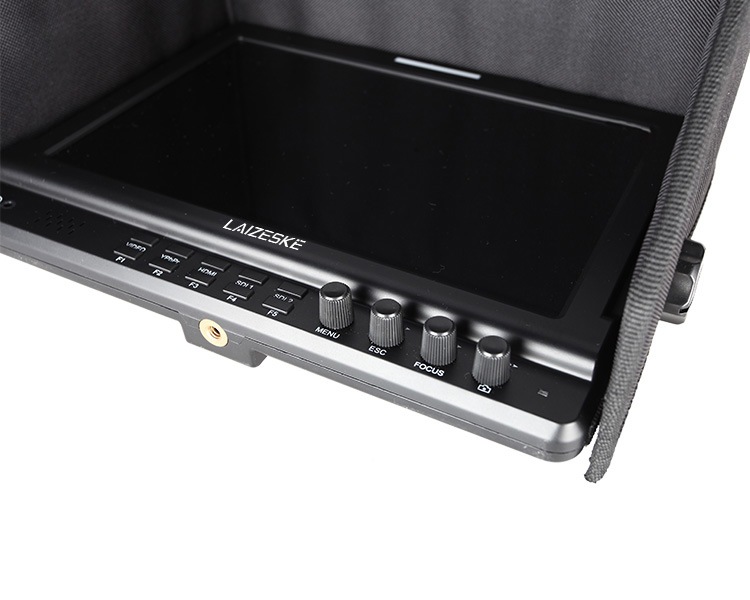

Screen Sunhood
New generation foldable sunhood allows you to get the ideal view effect in almost all the environment.
-

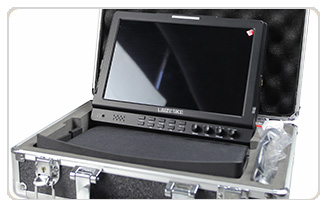

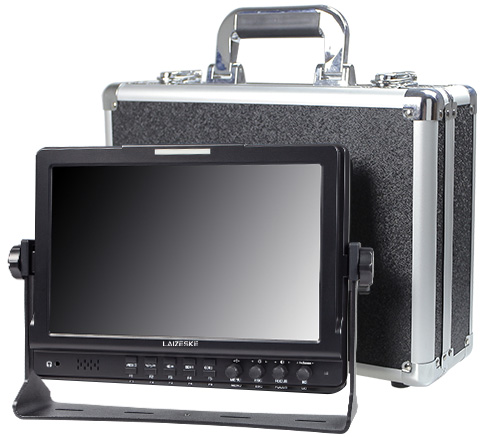

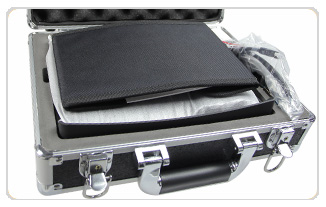

Portable Aluminum Suitcase
(Optional Accesories)
A specially designed aluminum portable case is offered to fill in all the accessories like monitor, stands, power adaptor and etc.. It is not only easy to carry, but also protect the monitors from damaging efficiently.
1. 1280×800, 800:1 contrast, IPS wide view angle H/V 178°
2. 3G/HD/SD-SDIx2, HDMI, YPbPr, Video, Audio (L/R) inputs
4. Monitoring via front panel 3.5mm stereo headphone jacks, built-in speaker
5. Built-in LED tally indicators
6. Power using included 12-volt supply or use standard 4-pin XLR
7. Special Features:
*Waveform (RGB, YUV, Y (Luminance)
*Vector Scope
*Color Histogram
*Histogram
*Embedded Audio Meter
*Focus Assist (Red, Green, Blue, White four color optional highlight over parts of the image in focus)
*False Colors
*Zebra Exposure
*Check Field (Gray/ Red/ Green/ Blue)
*Internal Colorbar
*Camera Mode
*Scan Mode (Auto, Over Scan, Full Screen)
*Pixel to Pixel
*Real time video zoom-in (Standard, 4x, 9x,16x)
*Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
*Image Flip (Horizontal, Vertical, Hor&Ver)
*Image Freeze
*Nine Grid
*Center Marker
*Safe Area (80%, 85%, 90%, 93%, 96%)
*Marker Type (16:9, 4:3, 2.35:1, 1.85:1)
*Marker Color (Red, Green, Blue, White, Gray, Black)
*Color Temperature Adjustment
2. 3G/HD/SD-SDIx2, HDMI, YPbPr, Video, Audio (L/R) inputs
4. Monitoring via front panel 3.5mm stereo headphone jacks, built-in speaker
5. Built-in LED tally indicators
6. Power using included 12-volt supply or use standard 4-pin XLR
7. Special Features:
*Waveform (RGB, YUV, Y (Luminance)
*Vector Scope
*Color Histogram
*Histogram
*Embedded Audio Meter
*Focus Assist (Red, Green, Blue, White four color optional highlight over parts of the image in focus)
*False Colors
*Zebra Exposure
*Check Field (Gray/ Red/ Green/ Blue)
*Internal Colorbar
*Camera Mode
*Scan Mode (Auto, Over Scan, Full Screen)
*Pixel to Pixel
*Real time video zoom-in (Standard, 4x, 9x,16x)
*Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
*Image Flip (Horizontal, Vertical, Hor&Ver)
*Image Freeze
*Nine Grid
*Center Marker
*Safe Area (80%, 85%, 90%, 93%, 96%)
*Marker Type (16:9, 4:3, 2.35:1, 1.85:1)
*Marker Color (Red, Green, Blue, White, Gray, Black)
*Color Temperature Adjustment
Video Analysis Assistant Pattern

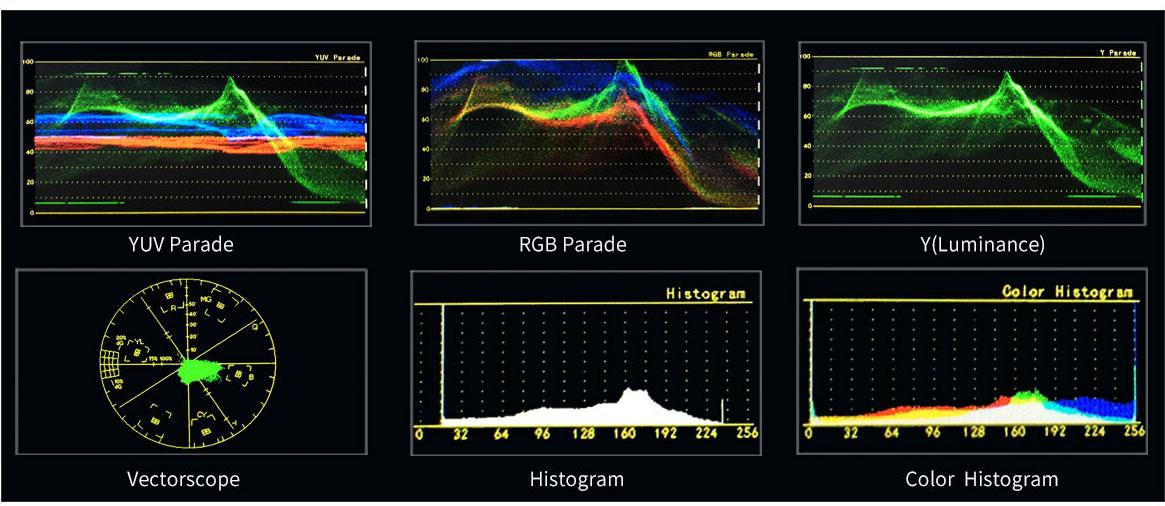

Waveform / Vector scope / Histogram
Waveform / Vector scope / Histogram
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Color Histogram
Color histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels in overlay histogram. Suitable for HD-SDI and HDMI signal monitoring.
Color histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels in overlay histogram. Suitable for HD-SDI and HDMI signal monitoring.
-

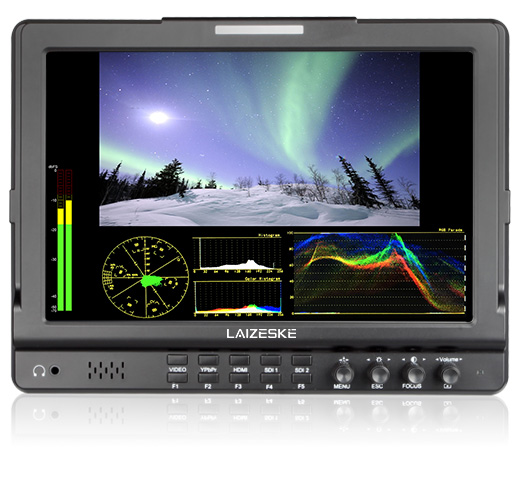

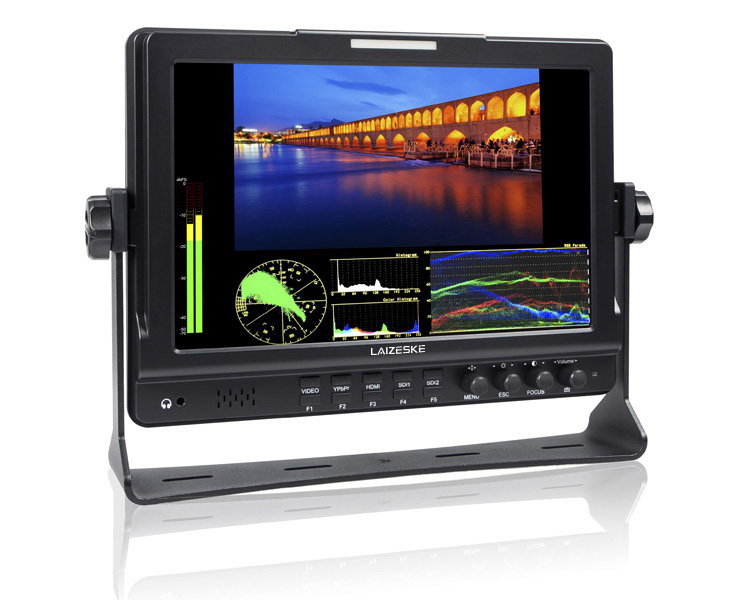

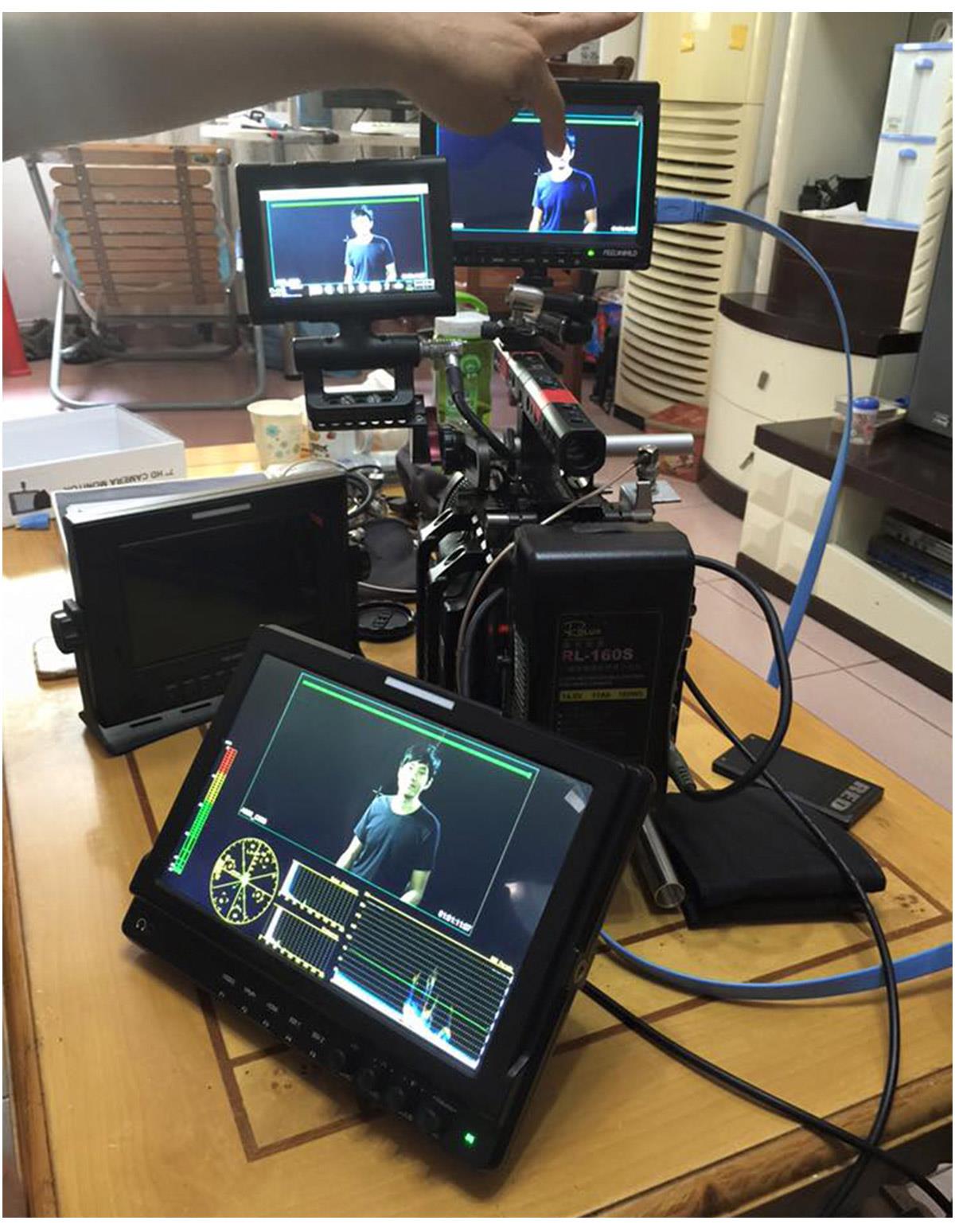

All Scopes Mode
This mode shrinks your video image to approximately the size of a 10.1" display and tiles your choice of vectorscope, histogram, and waveform on the border of your video.

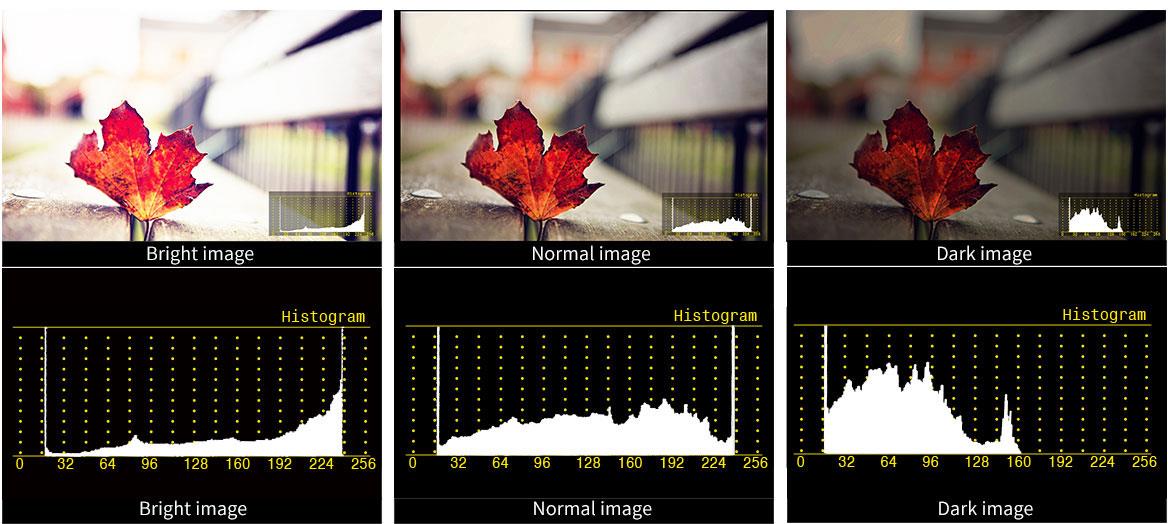

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left: Dark, Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left: Dark, Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.
-
Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

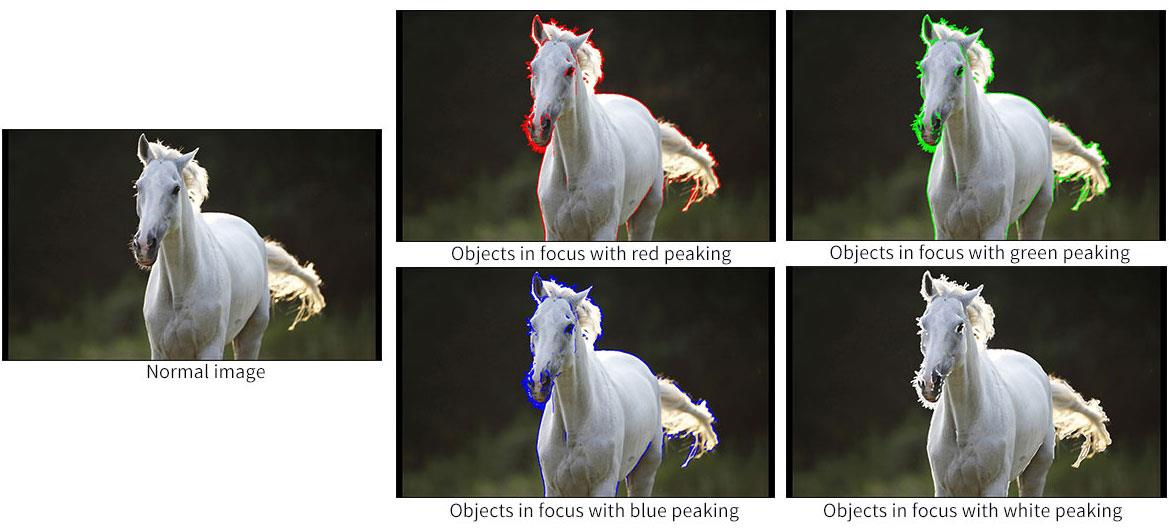

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue and white according to different tone of the subject.Peaking focus assist of FW1019 has High-low level to adjust, and also available during video zoom-in.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue and white according to different tone of the subject.Peaking focus assist of FW1019 has High-low level to adjust, and also available during video zoom-in.

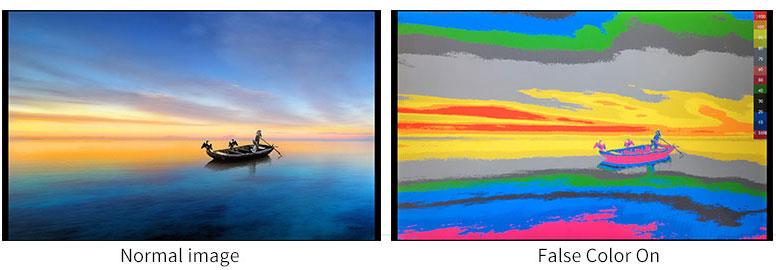

False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

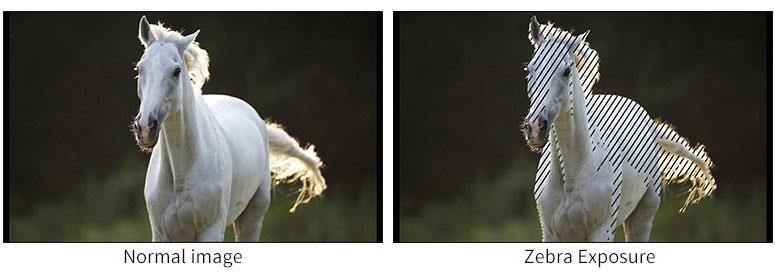

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern, it is considered overexposed and displays the moving warning lines onto the over exposed areas.
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern, it is considered overexposed and displays the moving warning lines onto the over exposed areas.
.jpg)

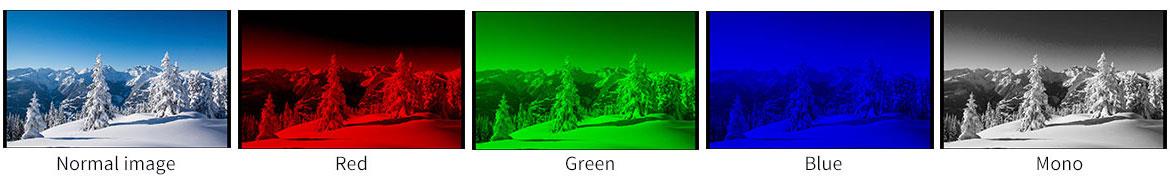

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
-

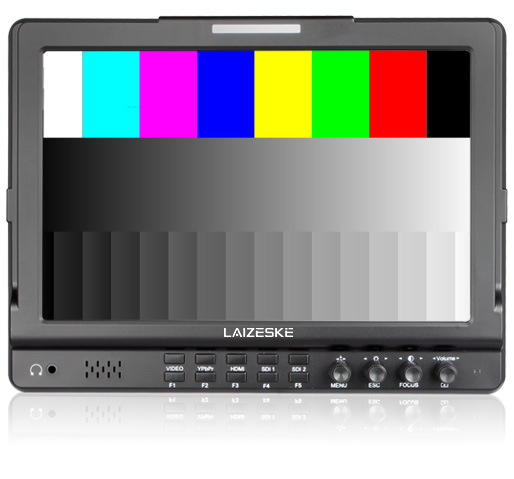

Internal Colorbar
Analyze monitor image color, adjust tone & brightness, etc.

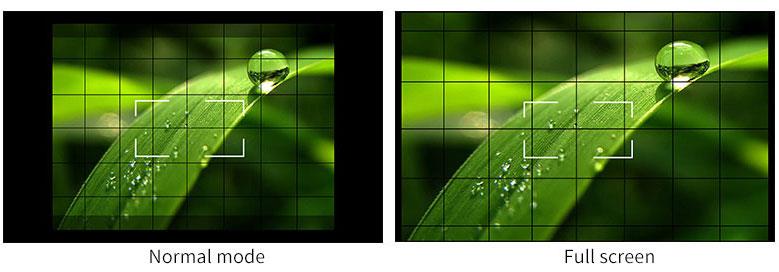

Camera Mode Function
It will be full screen under camera mode.
It will be full screen under camera mode.

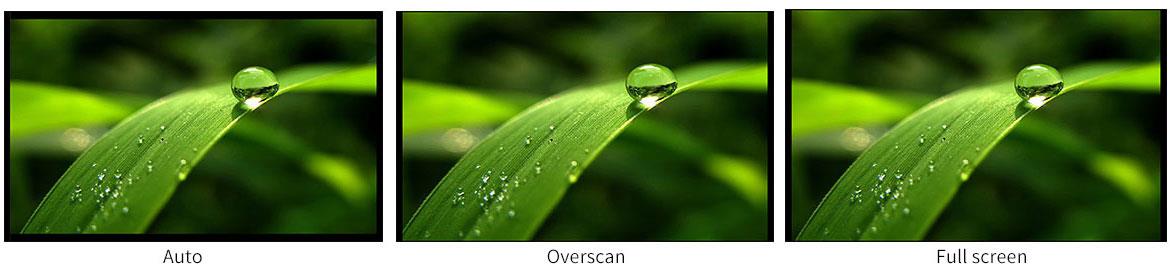

Scan Mode
Auto, Overscan, Full screen.
Auto, Overscan, Full screen.

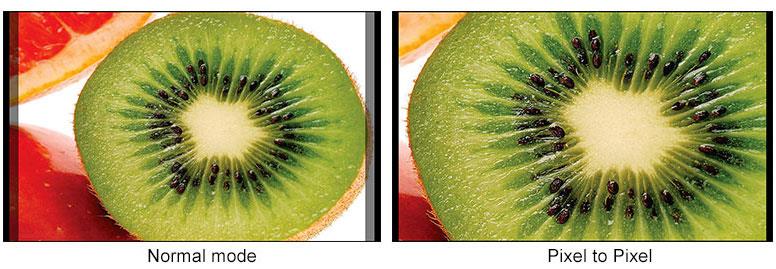

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

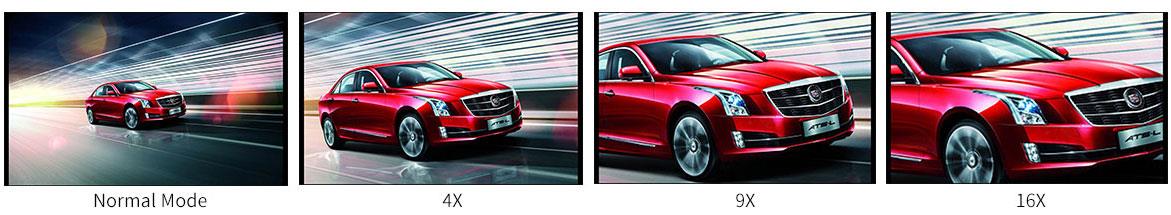

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.
Image magnification is HD signal in any part, an amplification for high quality close-up.
.jpg)

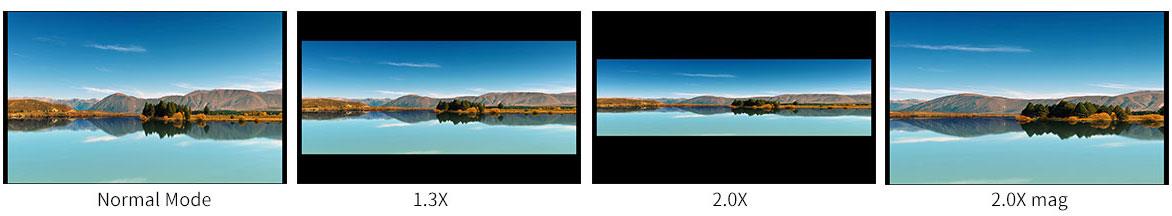

Anamorphic Mode
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.

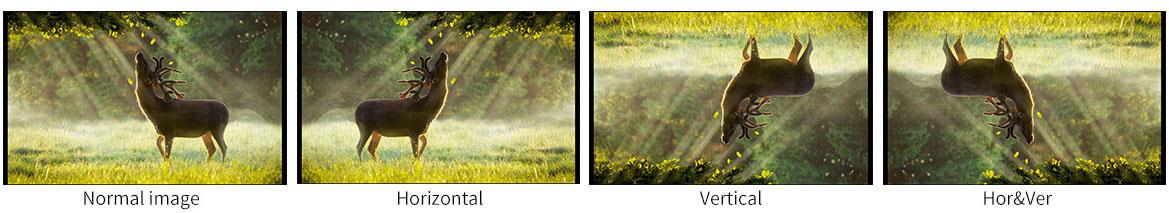

Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
The Horizontal, Vertical and Hor&Ver of the image around flip.

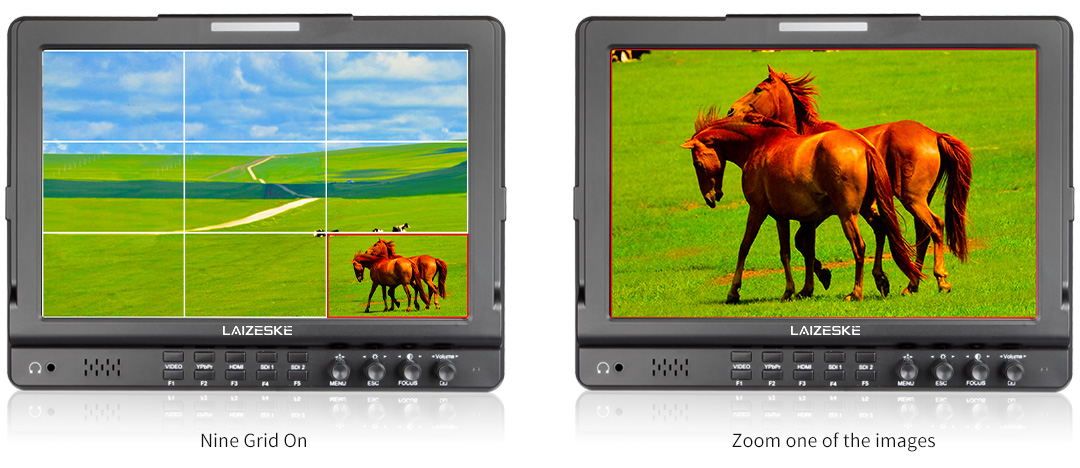

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black, Cyan, Purple, Yellow according to different tone of the subject.
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black, Cyan, Purple, Yellow according to different tone of the subject.

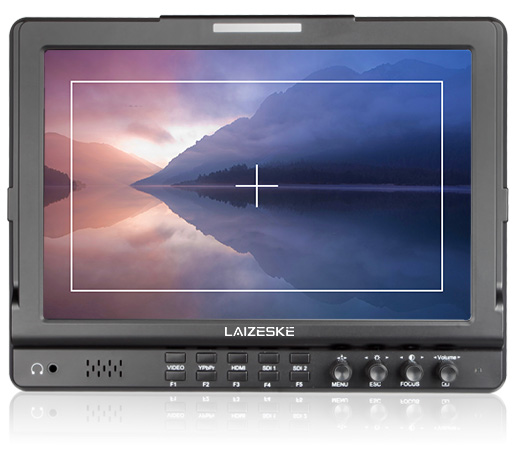

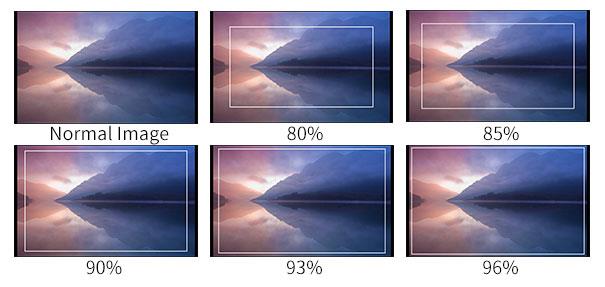

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Marker Types
It has 6 colors for option (Red, Green, Blue, White, Black, Gray).
It has 6 colors for option (Red, Green, Blue, White, Black, Gray).
Display Spec.
| Model | DR1019 |
| Size | 10.1" IPS |
| Resolution | 1280×800 pixels |
| Pixel Pitch | 0.1695(H)x0.1695(V) mm |
| Aspect Ratio | 16:10 |
| Brightness | 650cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input
| 2 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | Y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
Output
| 2 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | Y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
Audio
| Audio Out | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤16W |
| Power Connector | DC/ 4-pin XLR |
| Battery Plate | F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional) |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Socket (3 sides left&right&bottom) |
| Unit Size | 258L×192L×39D(mm) |
| Unit Weight | 780g |
Advanced Features
| * Waveform (RGB,YUV,Y (Luminance)) |
| * Vector Scope |
| * Color Histogram |
| * Histogram |
| * Embedded Audio |
| * Peaking Focus Assist ( has High-Low level to adjust; Red, Green, Blue, White four color optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra Exposure |
| * Check Field (Red,Green,Blue,Mono) |
| * Internal Colorbar |
| * Camera Mode |
| * Scan Mode (Auto,Over Scan, Full Screen) |
| * Zoom (Auto,4x,9x,16x) |
| * Anamorphic Mode (1.3x,2.0x,2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Nine Grid (Zoom one of the images to realize the full screen) |
| * Pixel to Pixel |
| * Center Marker |
| * Screen Marker (80%, 85%, 90%, 93%, 96%) |
| * Marker Types (16:9, 4:3, 2.35:1, 1.85:1) |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators |

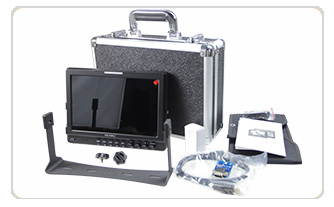

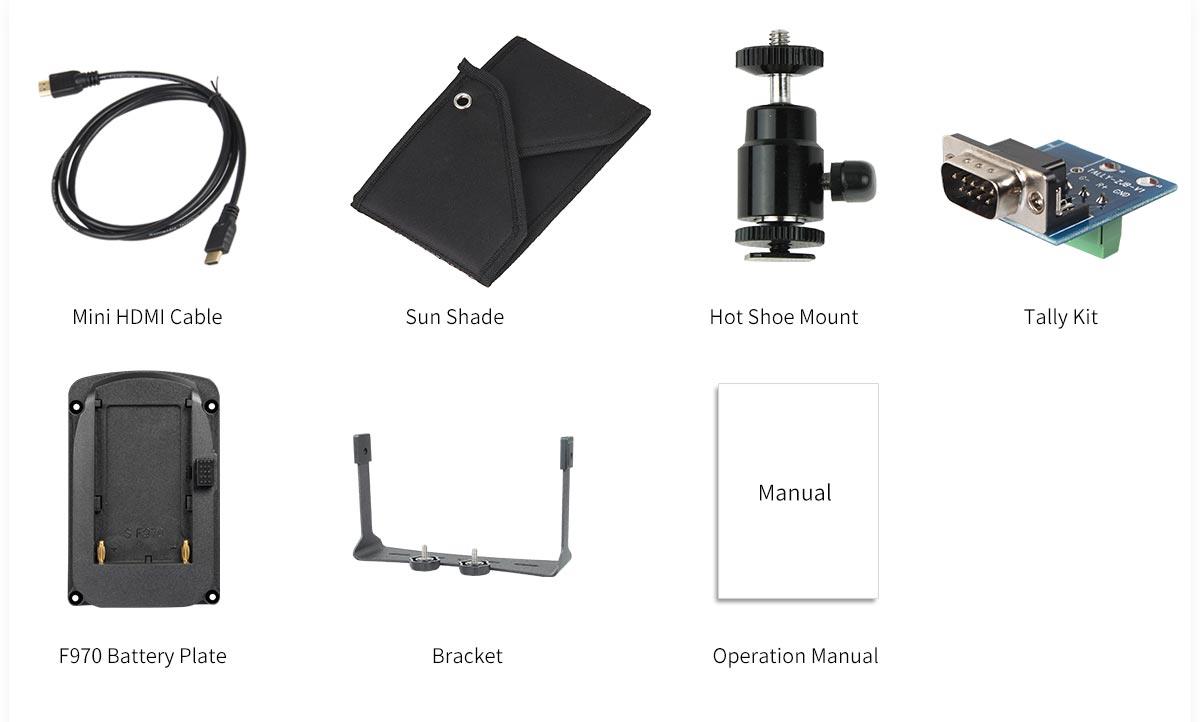

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× Tally Kit
1× U bracket
1× Operation Manual
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× Tally Kit
1× U bracket
1× Operation Manual
