LAIZESKE L7S 7-inch Rugged Aluminium 3G-SDI 4K HDMI On-camera Monitor IPS Full HD 1920x1200
Model：L7S
Introduction
Screen Size： 7" IPS
Resolution： 1920x1200 pixels
Aspect ratio： 16:10
Brightness： 2200cd/m²(Light Sensor)
Input
3G-SDI, HDMI
Output
3G-SDI, HDMI, Stereo Headphone
DM
Shop/2022/3/L7S_DM.pdf
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
Have you ever had such troubles? The screen is invisible when you shooting outdoors in the sun light, and re-shooting wastes time and increases cost. LAIZESKE L7S can solve your troubles, it features 2200nits ultra high brightness, the screen is clearly visible even in the sun light. 7-inch LCD larger screen with easy touch operation and professional auxiliary tools. Ideal choice for independent filmmakers and photography teams.
Clearly viewing and capture every detail with confidence
7-inch LCD screen with 1920x1200 resolution, clear and delicate image, high color reproduction. 2200nit ultra high brightness, clarity visible in the sun light; The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.
The L7S adopts rugged and durable aluminium housing, but still keep lightweight. Easily handle outdoor shooting in the wind and sun.
Ideal for outdoor shooting
With the support of 2200 nits of ultra-high brightness, L7S is not afraid of strong light. And the outdoor shooting screen display is clearly visible, you can shoot anywhere without a sunshade.
The L7S has an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
Easy and sensitive operation, make your filming more efficiency
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions.
yahei,sans-serif;">The L7S also supports physical buttons control, for some people prefer to use button operation, it is a better selection. Gently press or rotate the wheel button for quick selection and function settings, press F1~F3 to set shortcut button, you can press power switch to turn off the touch function to prevent misuse.
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside menu to exit the menu.
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Made for content creation, stable and reliable
With both 3G-SDI and 4K HDMI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio, enable the multi-position simultaneous monitoring. You can also monitor audio using the 3.5mm stereo headphone jack.
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
Display live picture on multiple displays simultaneously.
L7S with 3G-SDI signal LUT loop-out function, can output custom LUT image to other displays, so that the director and photographer can see the images with LUT at the same time. When the signal is SDI, and you need to use this function, just turn on "LUT Switch" and "LUT Out" on the menu.
Long-lasting power for your shooting
L7S provides dual Sony F970 battery plate to power by NP-F battery and 12V DC power options.
● Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series. As L7S is high brightness, we recommend you use the standard Sony F970 battery. Used the F970 battery (7.4V 6600mah), the monitor can working about 2.5 hours for one, use two batteries can be last for 4-5 hours. You can choose install 1 or 2 battery base on your need.
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vector scope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.
Supports up to load 50 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via SD Card(up to load 50).
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use L7S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. L7S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Meet your diverse need of monitoring
The monitor is equipped with 3 standard 1/4” mounting threads (bottom, left, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
Upper with 180° viewing angle, base with 360° rotation
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, LED light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
1. 7-inch 1920x1200 full HD IPS screen
2. Touch screen menu operation, improve shooting efficiency
3. Ultra-bright 2200nit, clearly visible in the sun
4. Light sensor auto dimming
5. Supports 3D LUT Log to REC.709 and user 3D LUT upload(up to 50)
6. Supports HDR monitoring, what you see is what you get
7. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
8. Stereo Earphone output
9. Dual battery plates, long last power for outdoor
User LUT Cube Import
Provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to monitor by SD card.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
This mode shrinks your video image to approximately the size of a 7" display and tiles your choice of waveform, vectorscope, histogram, and embedded audio on the border of your video.
Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Under SDI audio, it supports 4-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported..
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between yellow, red, green, blue, white according to different tone of the subject. The focus level can be adjusted from 1 to 10 levels.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (Zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. There is a 1%-100% zebra value that can be adjusted.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or gray pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Zoom In (100%～300%)
Image magnification is HD signal in any part, an amplification for high quality close-up. The touch panel can help you zoom in quickly, zoom out and move the image after zooming in.
Anamorphic Mode
Built-in selection of no squeeze, 1.25x, 1.33x, 1.5x, 2.0x or 2.0x mag allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid
Nine grid is the most common and basic composition method. The area of the picture is divided into nine equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1). You can switch the Mark color between Yellow, Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.
| Model | L7S |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 2200cd/m² (Light Sensor) |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| Audio | 3.5mm Stereo Headphone |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
| Input Voltage | DC7～24V |
| Power Consumption | ≤18W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Socket (Left, Right, Bottom) |
| Battery Plate | Dual F970 Battery Plate |
| Unit Size | 190Lx125Hx24D (mm) |
| Unit Weight | 540g |
| Color Box Size | 222L*158W*76H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 450*234*385 (mm) |
| Gross Weight | kgs |
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload |
| * Support Touch Menu |
| * Parade (RGB, YUV, Y) |
| * All Waves |
| * Vector |
| * RGB Histogram |
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) |
| * False Colors |
| * Zebra Exposure (1%~100% adjustable) |
| * Check Field (Red, Green, Blue, Gray) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) |
| * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
| * Marker Color (red, green, blue, white, black, yellow) |
| * Color Temperature Adjustment |
| * Nine Grid |
| * Zoom (100%~300%) |
| * Aspect Ratio |
| * Pixel to Pixel |

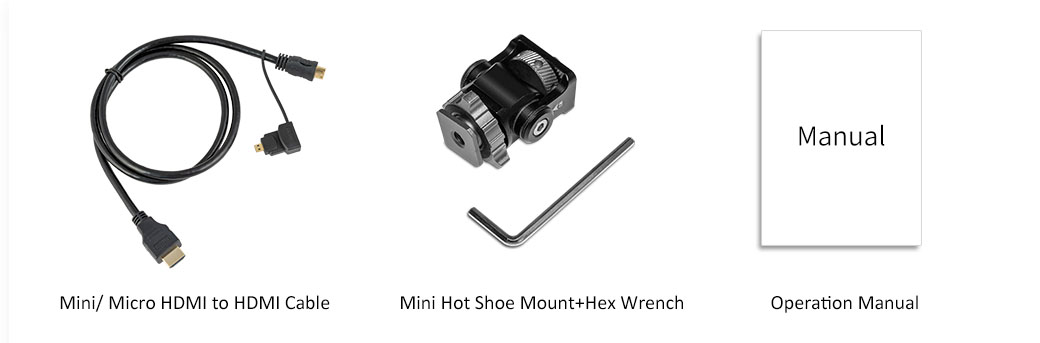

1× Mini/ Micro HDMI to HDMI Cable
1× Mini Hot Shoe Mount + Hex Wrench
1× Operation Manual
