Professional Auxiliary Shooting Functions
Now it's easy to get perfect focus and framing!
LAIZESKE DRF45 monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.
Now it's easy to get perfect focus and framing!
LAIZESKE DRF45 monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.

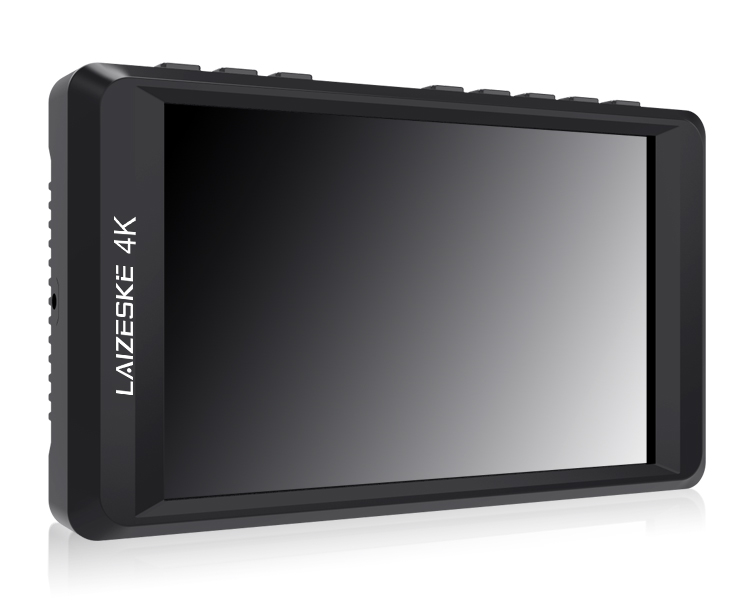

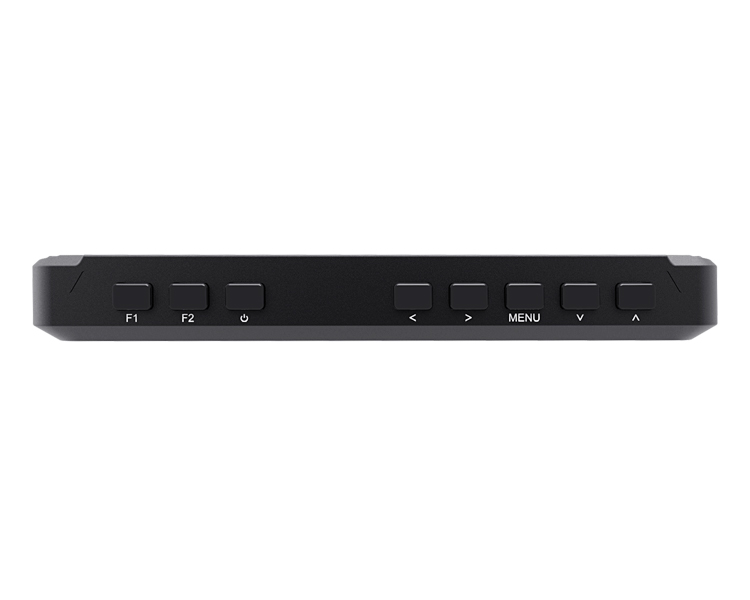

Ultra-thin Design

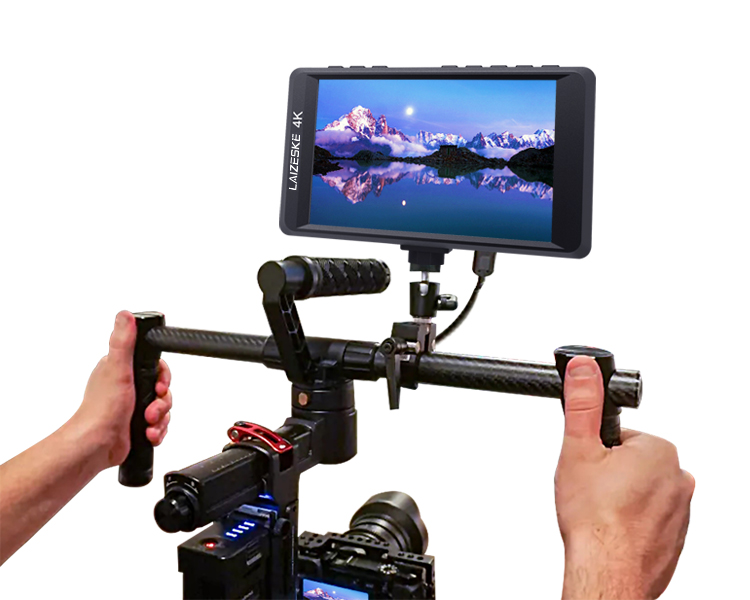

Simple, Compact and Rugged for Stabilizer
LAIZESKE DRF45 is jam packed with features in a small, lightweight package, so it's easy to hold in your hands.
Simple, Compact and Rugged for Stabilizer
LAIZESKE DRF45 is jam packed with features in a small, lightweight package, so it's easy to hold in your hands.
Shoot Better Video
See and capture every detail with confidence
Whether it's a wedding, an indie film, or a television commercial, you need to make sure your images are perfectly sharp and captured at the highest possible quality, no matter what type of camera you use. LAIZESKE DRF45 helps you make sure every shot is in focus and gives you professional images with the same recording quality used by major motion pictures and prime time TV shows!
See and capture every detail with confidence
Whether it's a wedding, an indie film, or a television commercial, you need to make sure your images are perfectly sharp and captured at the highest possible quality, no matter what type of camera you use. LAIZESKE DRF45 helps you make sure every shot is in focus and gives you professional images with the same recording quality used by major motion pictures and prime time TV shows!

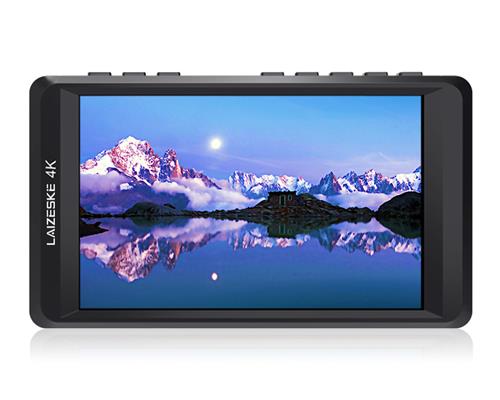

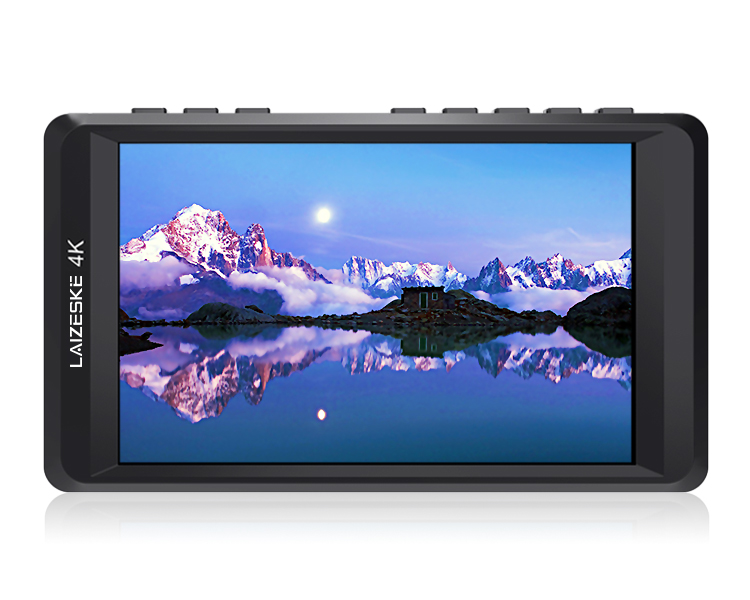

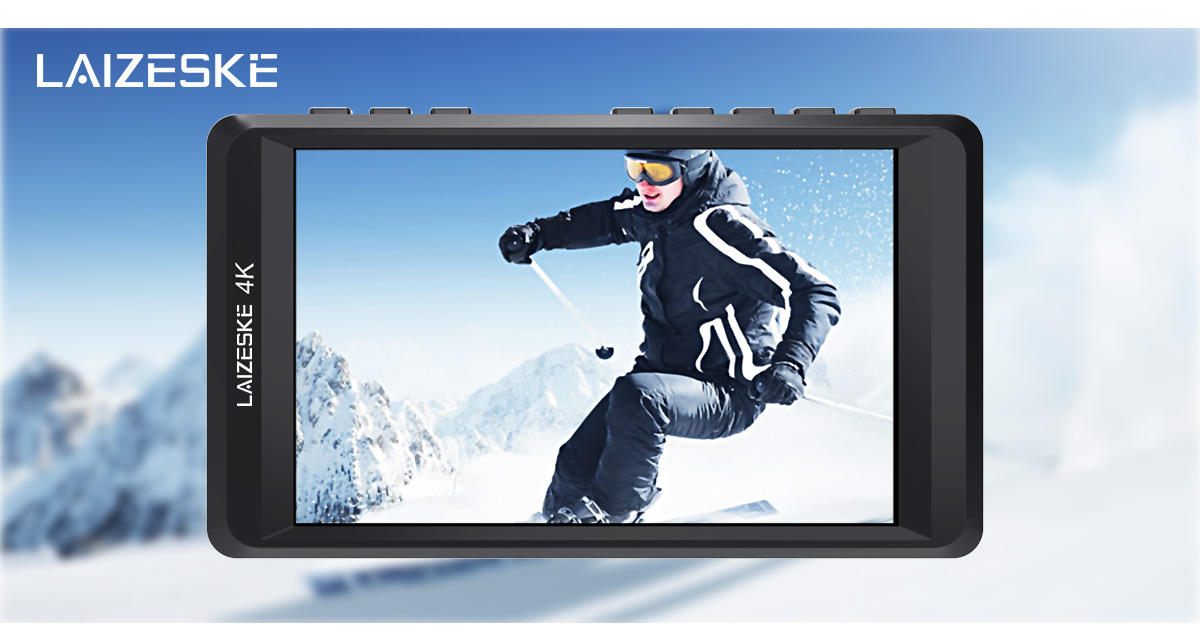

IPS 1280X800 Resolution
Better Monitoring
LAIZESKE DRF45 delivers amazing picture quality in an incredibly thin lightweight design. The wide 160° viewing angle makes it easy for multiple members of the crew to watch it at the same time.
Better Monitoring
LAIZESKE DRF45 delivers amazing picture quality in an incredibly thin lightweight design. The wide 160° viewing angle makes it easy for multiple members of the crew to watch it at the same time.

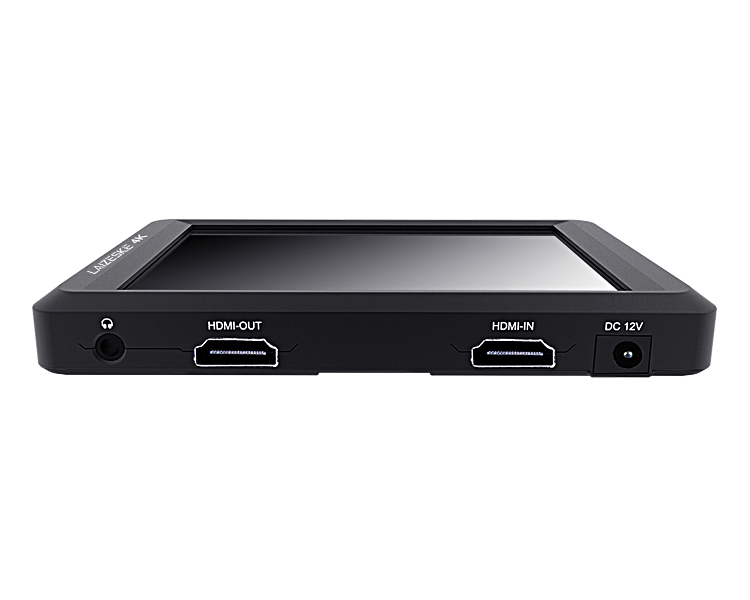

High Quality Connections

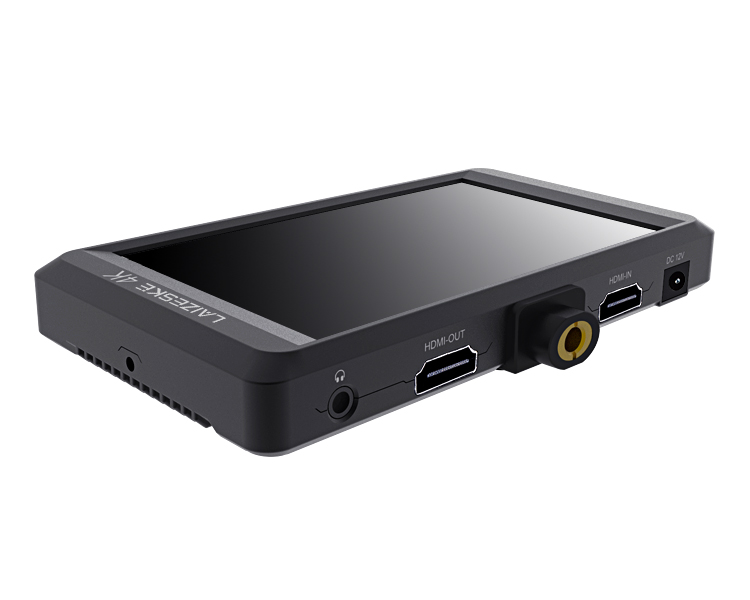

LAIZESKE DRF45 is jam packed with features in a small, lightweight package. It is equipped with 4K HDMI input and output interface, so you can connect monitor to various 4K camera, you can also 4K HDMI video signal synchronization output, convenience director and photographer monitoring at the same time. You can also monitor audio using the 3.5mm stereo headphone jack.
LAIZESKE DRF45 is jam packed with features in a small, lightweight package. It is equipped with 4K HDMI input and output interface, so you can connect monitor to various 4K camera, you can also 4K HDMI video signal synchronization output, convenience director and photographer monitoring at the same time. You can also monitor audio using the 3.5mm stereo headphone jack.
Support 4K HDMI Input/ Output
Plug into 4K camera and more
Plug into 4K camera and more
4K HDMI Loop-out
The DRF45 has both HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
The DRF45 has both HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

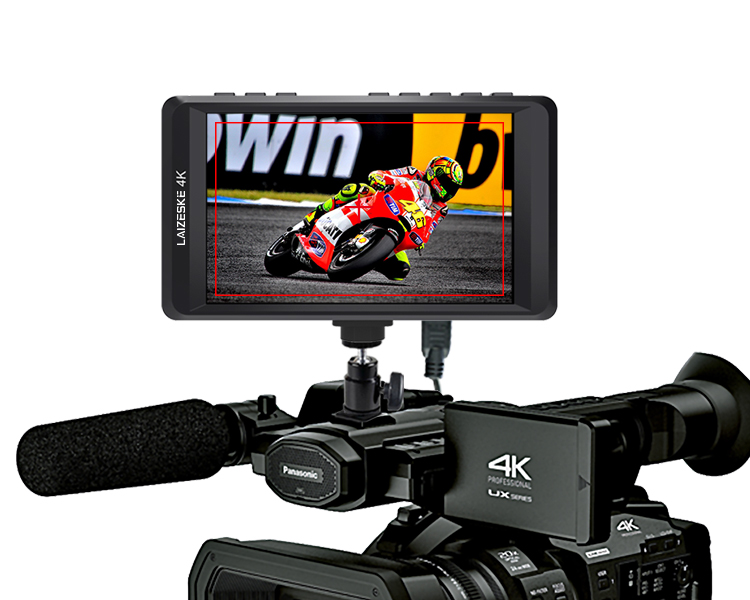

Multiple Install Way
To convenient the various angles monitoring
LAIZESKE DRF45 features standard 1/4" mount points for attaching it to cameras and rigs.
Using the 1/4 inch hole, you can sit on a table using the built in kick stand or securely attach it to the top of your camera as the ultimate HD viewfinder!
To convenient the various angles monitoring
LAIZESKE DRF45 features standard 1/4" mount points for attaching it to cameras and rigs.
Using the 1/4 inch hole, you can sit on a table using the built in kick stand or securely attach it to the top of your camera as the ultimate HD viewfinder!

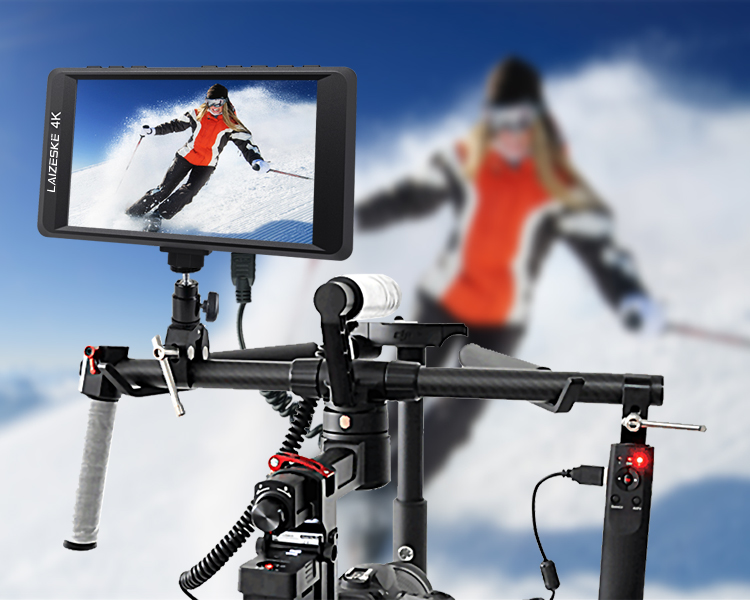

LAIZESKE DRF45 High resolution monitoring for stabilizer

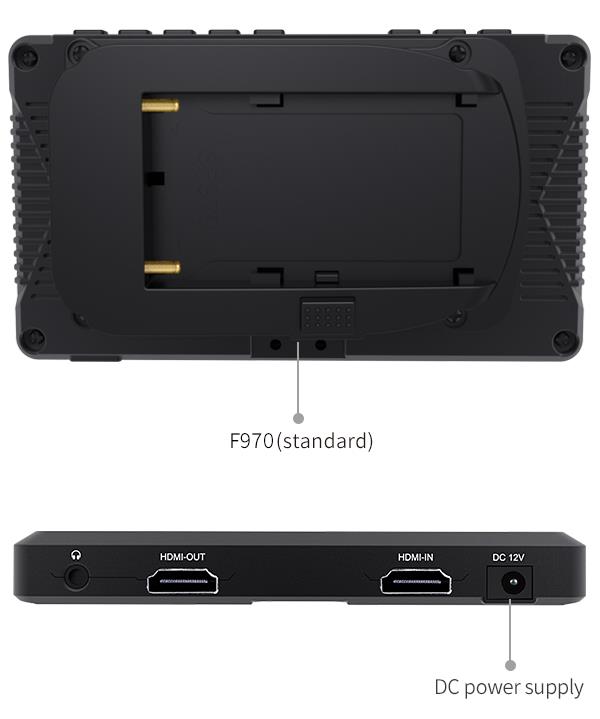

Flexible Battery System
Hassle-free power

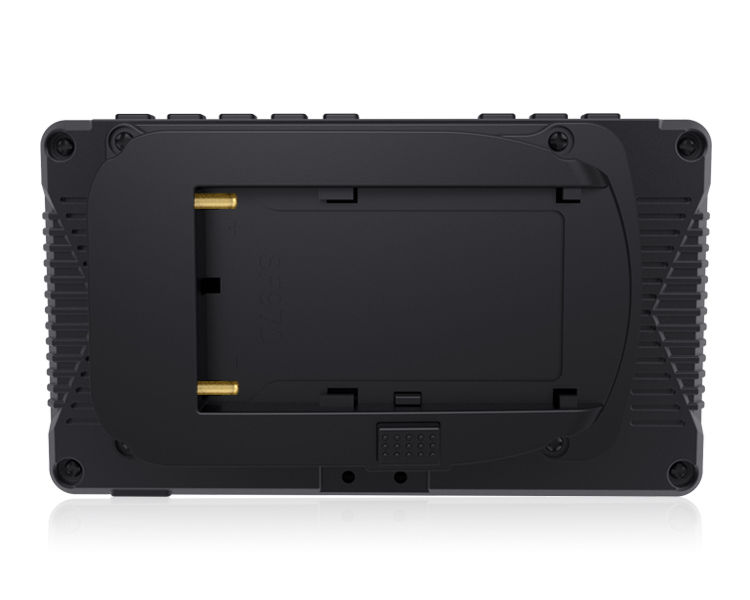

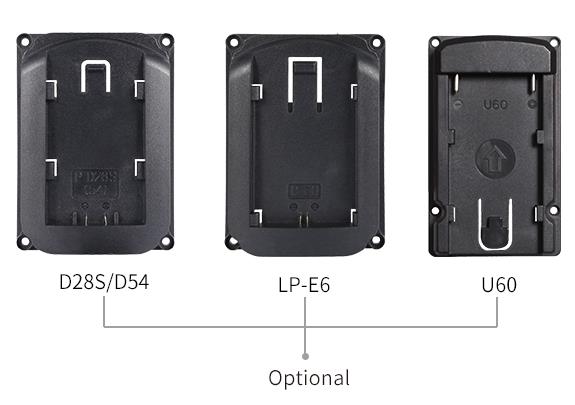

For power, there's a 12V DC input on the side and space for a battery plate on the back. When connected to the 12V DC input you get continuous power or you can run it off of compatible rechargeable battery. And the DRF45 supports F970 (standard), D28S/D54, LP-E6 and U60 battery plate of your choice.
Hassle-free power
For power, there's a 12V DC input on the side and space for a battery plate on the back. When connected to the 12V DC input you get continuous power or you can run it off of compatible rechargeable battery. And the DRF45 supports F970 (standard), D28S/D54, LP-E6 and U60 battery plate of your choice.
1. Wide view angle, HD, bright, colorful display
2. 4K HDMI input and loop-through output

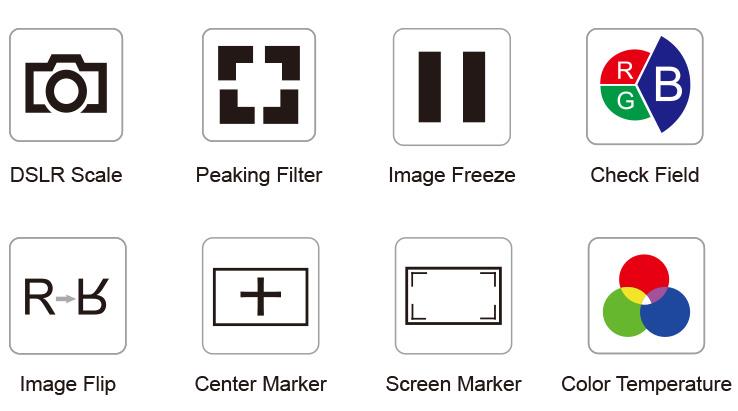

3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
4. Monitoring via 3.5mm stereo headphone jack
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
-

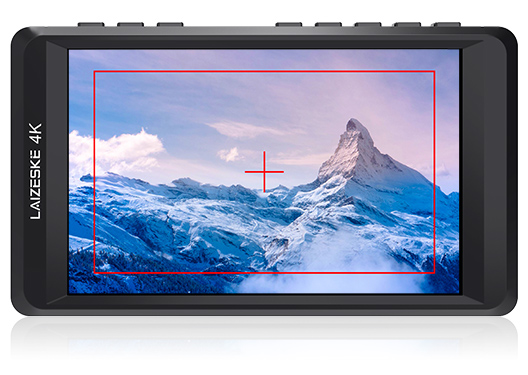

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | DRF45 |
| Screen Size | 4.5" IPS |
| Color Depth | 16.8M (8 bit) |
| Resolution | 1280 × 800 pixels |
| Pixel Pitch | 0.07575 (H) × 0.02525 (W) mm |
| Aspect Ratio | 16:10 |
| Brightness | 470cd/m² |
| Contrast Ratio | 900:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
Audio
| Audio | Headphone, Speaker |
HDMI Support Format
| 480i/576i/480p/576p |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |

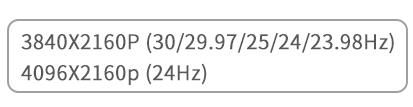

| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
| Input Voltage | DC7～18V |
| Power Consumption | ≤5W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~65°C |
| Unit Size (mm) | 126Lx72Hx16D mm |
| Unit Weight | 170g/ 200g (With F970 Battery Plate) |
Advanced Features
| *Peaking Focus Assist (Red highlight over parts of the monochrome image in focus) |
| *Check Field (Red, Green, Blue, Mono) |
| *Camera 5D II Mode |
| *Center Marker |
| *Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) |
| *Image Flip (H, V, H/V) |
| *Image Freeze |
| *Custom Color Temperature |
| *Aspect Ratio |
| *Zoom All |
| *U/D Zoom |
| *L/R Zoom |
| *Pixel to Pixel (Nonsupport in 4K input) |
Dimensions (Unit: mm)
Standard Accessories:
1× Mini HDMI Cable
1× Hot Shoe Mount
1× F970 Battey Plate
1× 1/4" Screw Lock
1× Operation Manual
1× Mini HDMI Cable
1× Hot Shoe Mount
1× F970 Battey Plate
1× 1/4" Screw Lock
1× Operation Manual
