DR759 is a specially designed portable LCD monitor for professional HDV and HDSLR Cameras.
Its Super Slim 17mm
Wide viewing angle IPS 1280x800
Professional Peaking Filter
Make it more easy for outdoor shooting.
![](/UpLoadFiles/Shop/2016/6/line11.jpg)

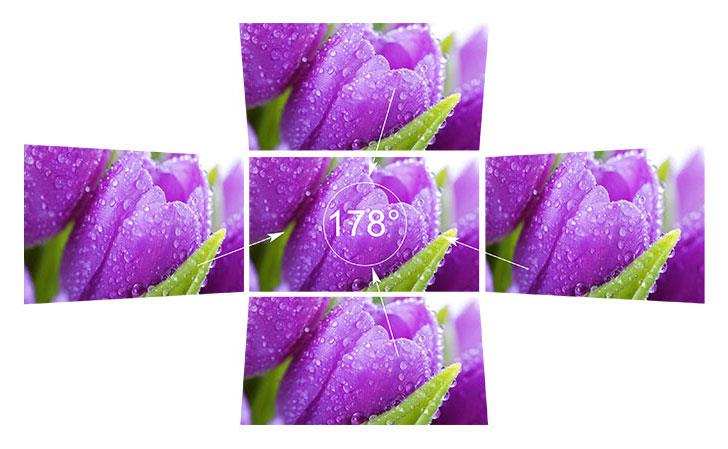

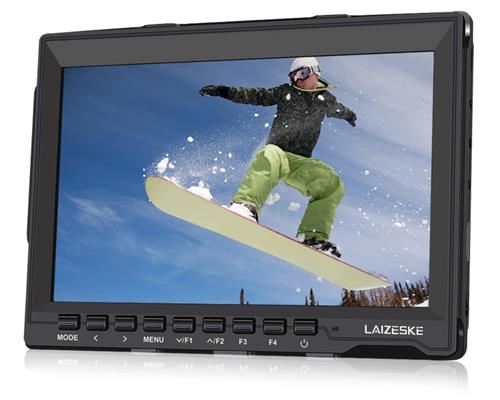

Wider Viewing Angle
Enjoy Consistent Images from Any Perspective. DR759 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
Enjoy Consistent Images from Any Perspective. DR759 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
![](/UpLoadFiles/Shop/2016/7/wider-viewing-angle.jpg)
![](/UpLoadFiles/Shop/2016/6/line11.jpg)
-

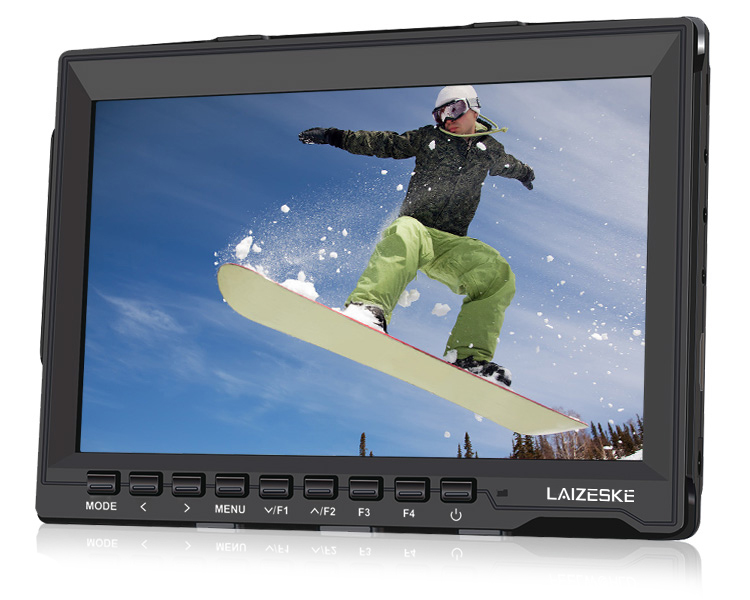

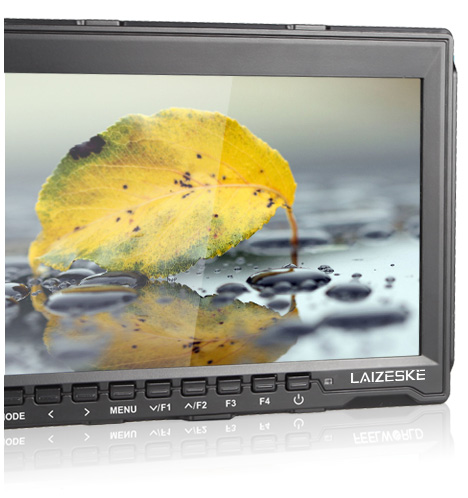

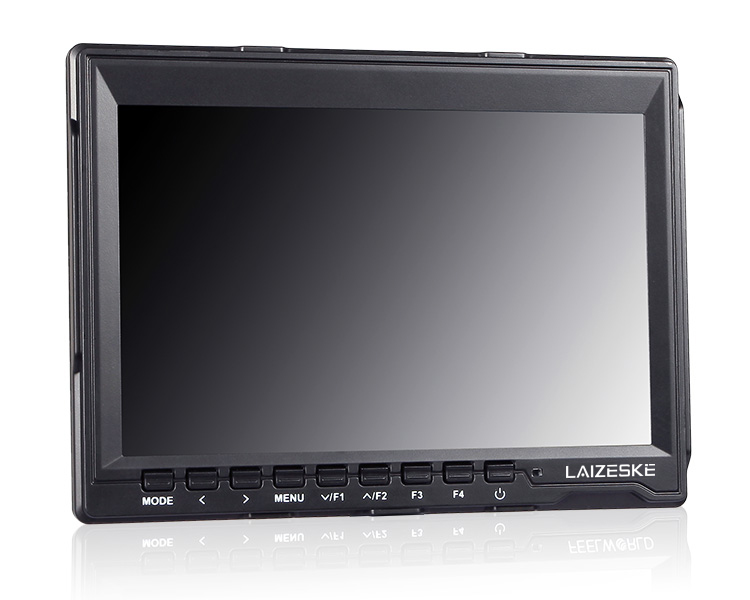

Wide color gamut LCD panel and 1280×800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.
![](/UpLoadFiles/Shop/2016/6/详情页 line1.jpg)

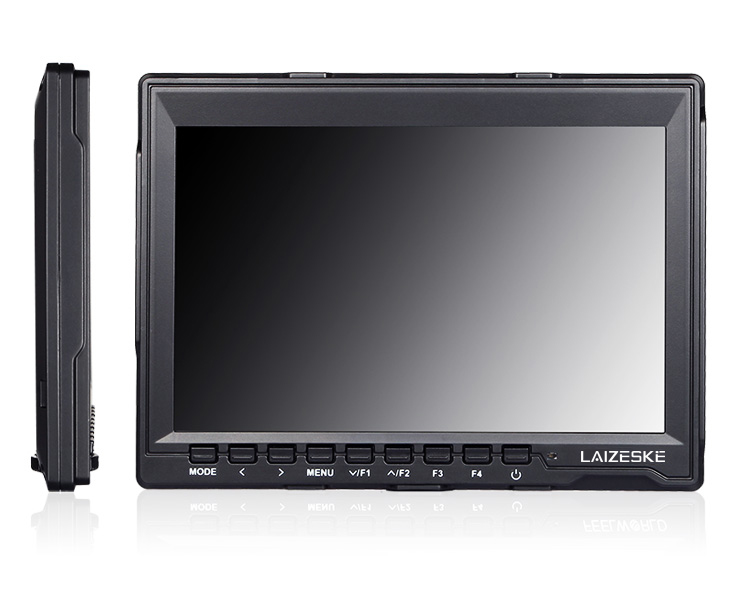

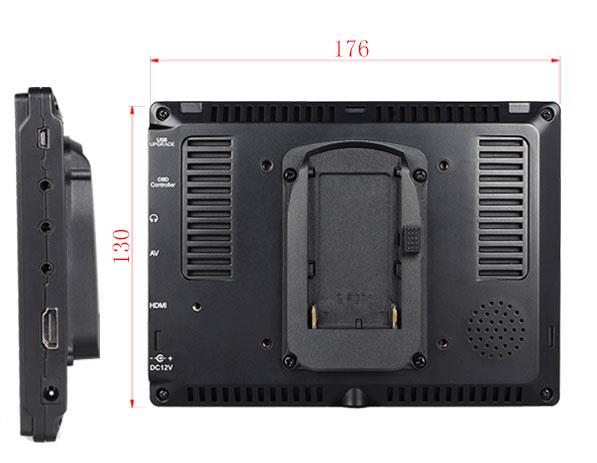

Ultra-thin Lightweight Design
Specially designed to merge portability,and functionality, 17mm thickness 300g the DR759 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Specially designed to merge portability,and functionality, 17mm thickness 300g the DR759 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
![](/UpLoadFiles/Shop/2016/6/line6.jpg)
-

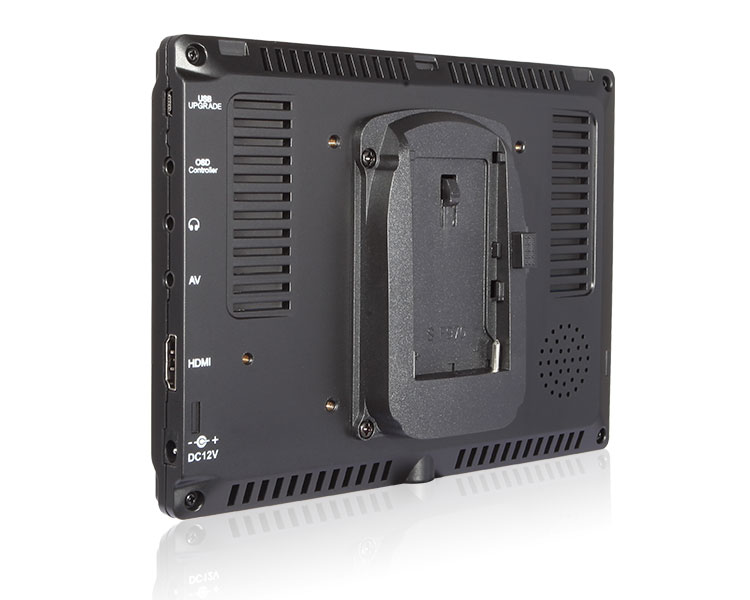

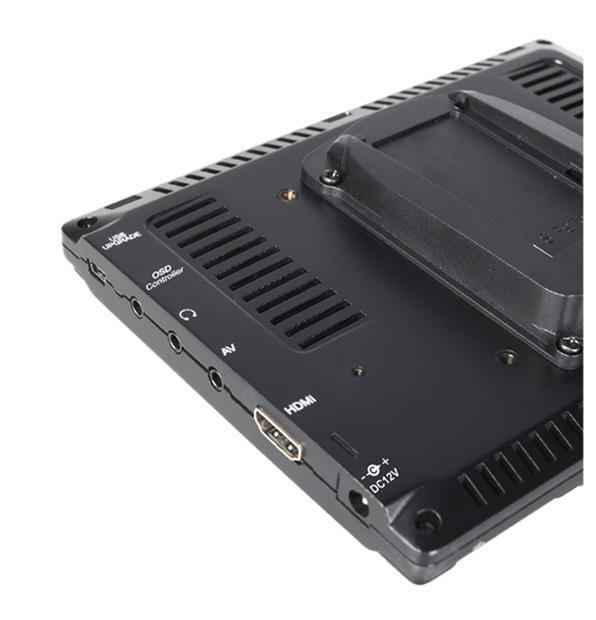

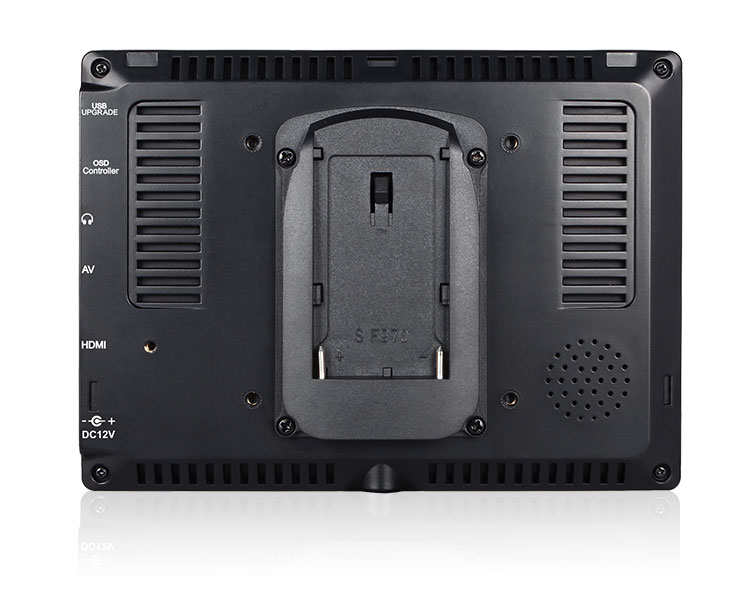

Supports a wide range of signal inputs
The DR759 multiple input options include HDMI and AV, and support most DSLRs and camcorders.
![](/UpLoadFiles/Shop/2016/6/line6.jpg)
-

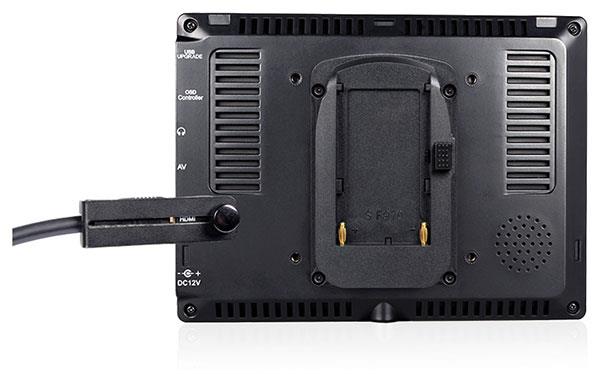

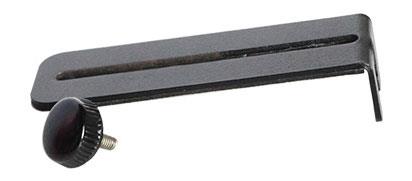

HDMI Lock
In order to avoid affecting the shooting from bad connection while use HDMI format for HD signal transmission (actually this problem happens frequently), therefore, we specially designed HDMI lock to ensure the safety of signal transmission.
![](/UpLoadFiles/Shop/2016/6/line11.jpg)

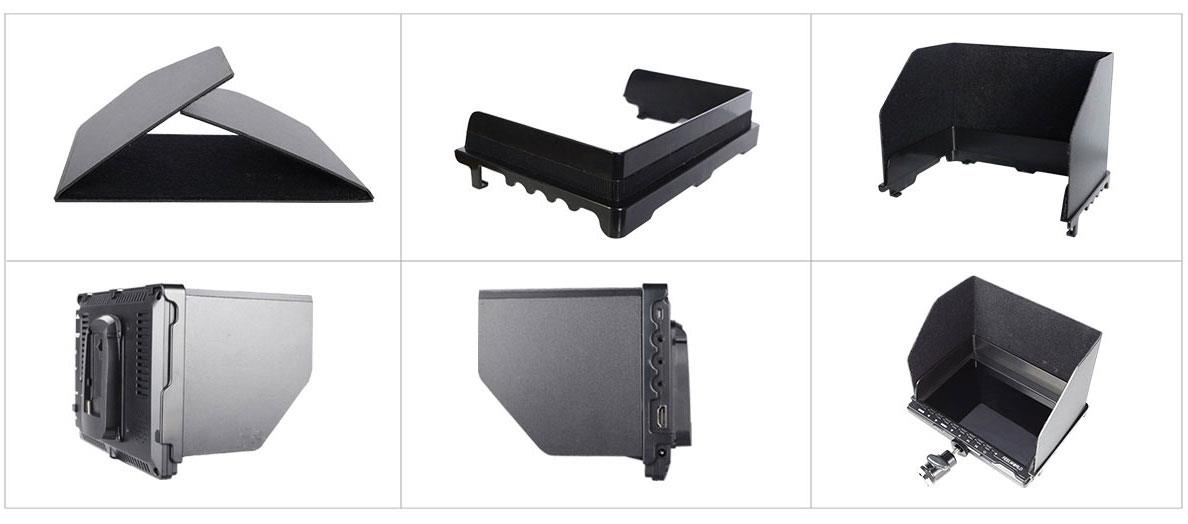

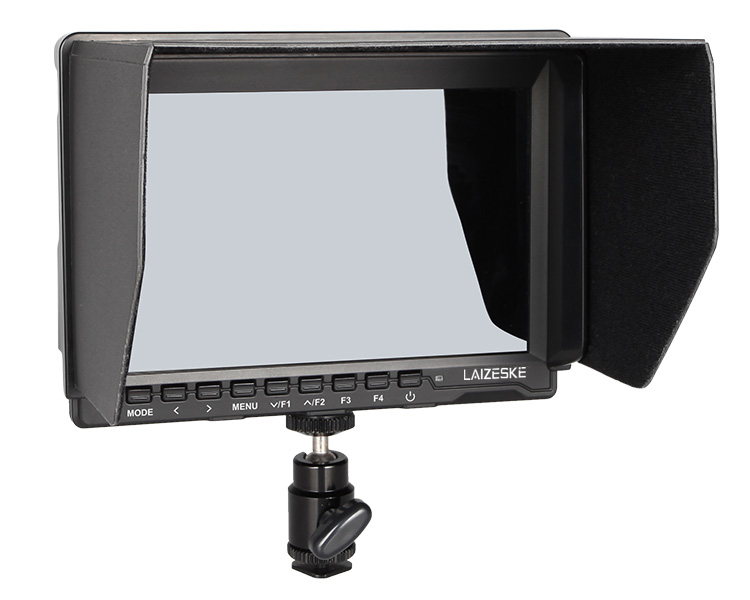

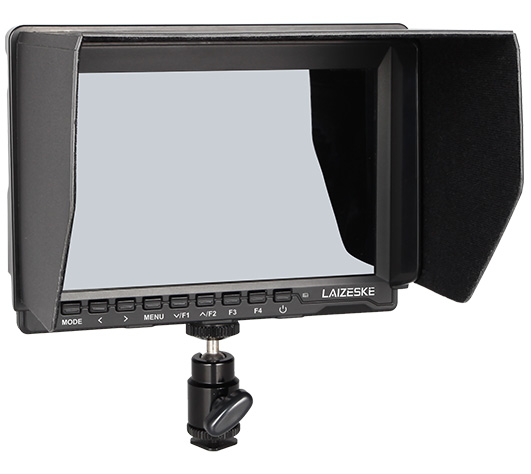

Collapsable Sunshade
is included for easier viewing in bright environments.
is included for easier viewing in bright environments.
![](/UpLoadFiles/Shop/2016/7/sunshade4.jpg)
![DR759-7-inch-hd-1080p-monitor](/UpLoadFiles/Shop/2017/10/DR759-7-inch-hd-1080p-monitor.jpg)
Slim design 17mm 7 inch Field Monitor
Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane.
Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane.
![7-inch-lcd-hdmi-monitor](/UpLoadFiles/Shop/2017/10/7-inch-lcd-hdmi-monitor.jpg)
1. Wide view angle IPS Screen, High resolution 1280x800, bright, colorful display
2. The enhanced 400cd/m² backlight and 800:1 color contrast ratio
3. Slim design 17mm, Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, HandheldStabilizer, Video Camera Crane
4. Inputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm Audio
2. The enhanced 400cd/m² backlight and 800:1 color contrast ratio
3. Slim design 17mm, Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, HandheldStabilizer, Video Camera Crane
4. Inputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm Audio
5. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
![](/UpLoadFiles/Shop/2016/7/line 功能1.jpg)
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
![](/UpLoadFiles/Shop/2016/7/Peaking Focus Assist.jpg)
![](/UpLoadFiles/Shop/2016/7/line 功能1.jpg)
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
![](/UpLoadFiles/Shop/2016/7/Check Field.jpg)
![](/UpLoadFiles/Shop/2016/7/line 功能1.jpg)
Camera Mode Function
It will be full screen under camera mode.
It will be full screen under camera mode.
![](/UpLoadFiles/Shop/2016/7/Camera 5D II Mode.jpg)
![](/UpLoadFiles/Shop/2016/7/line 功能1.jpg)
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
![](/UpLoadFiles/Shop/2016/7/Pixel to Pixel.jpg)
![](/UpLoadFiles/Shop/2016/7/line 功能1.jpg)

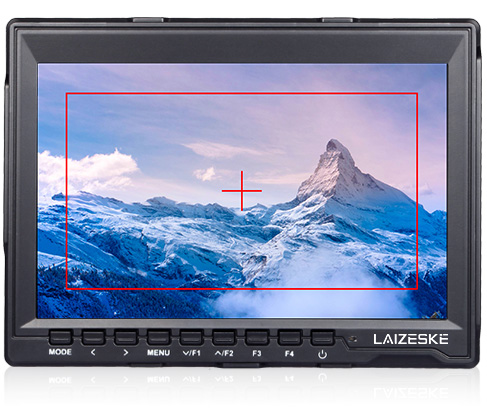

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
![](/UpLoadFiles/Shop/2016/7/line 功能1.jpg)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
The Horizontal, Vertical and Hor&Ver of the image around flip.
![](/UpLoadFiles/Shop/2016/7/Image Flip.jpg)
Display Spec.
Model | DR759 |
Screen Size | 7" IPS |
Resolution | 1280×800 pixels |
Dot pitch | 0.11775(H) × 0.11775(V) mm |
Aspect Ratio | 16:10 |
Brightness | 400cd/m² |
Contrast Ratio | 800:1 |
Backlight | LED |
Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input
1 X HDMI | HDMI |
1 X AV | AV |
1 X OSD controller | Wire remote OSD controller |
Audio
Audio Out | Stereo Headphone, Speaker |
HDMI Support Format
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
Input Voltage | DC6.5~35V |
Power Consumption | ≤5W |
Power Connector | DC |
Battery Plate | F970 (Standard); D28S, LP-E6 (Optional) |
Working Temperature | -20°C~50°C |
Storage Temperature | -30°C~60°C |

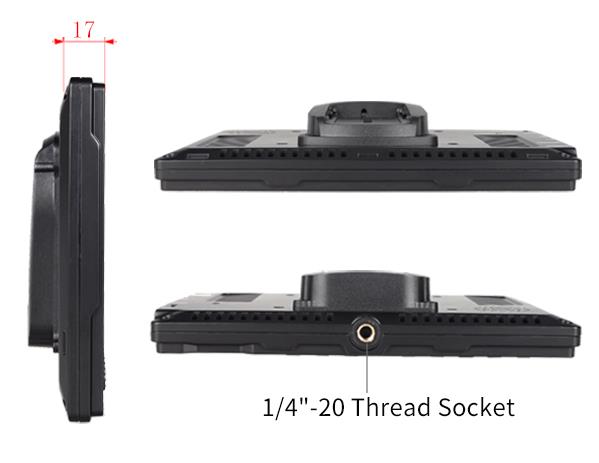

Install Way | 1/4"-20 Thread Socket (1 bottom side) |
Unit Size | 176L×130H×17D (mm) |
Unit Weight | 300g |
Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
* Check Field (Red,Green,Blue,Mono) |
* Camera Mode |
* Pixel to Pixel |
* Center Marker |
* Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
* Image Flip (H, V, H/V) |
* Image Freeze |
* Zoom All |
* U/D & L/R Zoom |
* Custom Color Temperature |
Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× HDMI Plug Lock
1× Operation Manual
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× HDMI Plug Lock
1× Operation Manual
